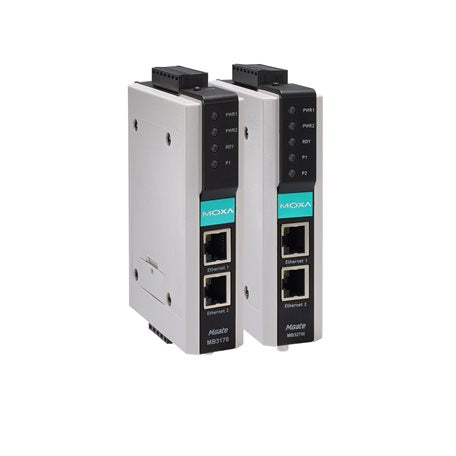

Moxa MGate MB3170-S-SC | MGate MB3170 1-Port Modbus Gateway, Single-Mode SC

Authorised Moxa Partner

SKU:MGate MB3170-S-SC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate MB3170-S-SC is a 1-port advanced Modbus gateway that converts between Modbus TCP and Modbus RTU/ASCII, connecting serial devices to Ethernet networks. This variant adds a 100BaseFX single-mode fibre port with an SC connector, suited to long-distance or electrically noisy runs, and operates across 0 to 60°C with a non-isolated RS-232/422/485 serial port.

The gateway supports up to 32 Modbus TCP client and 32 server connections, with Auto Device Routing, routing by TCP port or IP address, and embedded Modbus traffic monitoring for faster troubleshooting. Two RJ45 Ethernet ports provide built-in cascading, and the DIN-rail mountable IP30 housing accepts 12 to 48 VDC power.

Features

- Auto Device Routing for easy configuration
- Route by TCP port or IP address for flexible deployment
- Connects up to 32 Modbus TCP servers
- Accessed by up to 32 Modbus TCP clients
- Supports Modbus serial master to Modbus serial slave communications
- Built-in Ethernet cascading for easy wiring
- Emergency request tunnels ensure QoS control
- Embedded Modbus traffic monitoring for easy troubleshooting
- Redundant dual DC power inputs and 1 relay output
- Secure management via HTTPS (TLS 1.2), SNMPv3 and AES encryption
- DIN-rail mountable rugged design

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port, software selectable, DB9 male and terminal block
- 2 x 10/100BaseT(X) RJ45 ports (1 IP, Ethernet cascade), Auto MDI/MDI-X
- 1 x 100BaseFX single-mode fibre port, SC connector, 1310 nm, typical distance 40 km
- Fibre link budget 29 dB, G.652 fibre
- Modbus TCP Client/Server and Modbus RTU/ASCII Master/Slave
- Up to 32 client and 32 server connections
- Serial baud rate 50 bps to 921.6 kbps
- Input voltage 12 to 48 VDC, 555 mA @ 12 VDC, 7-pin terminal block
- 1 relay output, 1 A @ 30 VDC resistive
- IP30 plastic housing, DIN-rail mountable
- Dimensions 29 x 89.2 x 118.5 mm (without ears), weight 360 g
- Operating temperature 0 to 60°C, storage -40 to 85°C
- Humidity 5 to 95% non-condensing
- Approvals include ATEX, Class I Division 2, IECEx, DNV, UL 508
- MTBF 1,580,051 hrs (Telcordia SR332)

FAQs

Q: What fibre type and connector does the MGate MB3170-S-SC use?
A: It has one 100BaseFX single-mode fibre port with an SC connector, operating at 1310 nm with a typical distance of 40 km on G.652 fibre.

Q: How does this model differ from the -T and -I variants?
A: The -S-SC covers 0 to 60°C and has a non-isolated serial port. The -T variants are wide temperature models and the -I variants add serial isolation.

Q: How many Modbus connections does it support?
A: It supports up to 32 Modbus TCP client connections and up to 32 server connections in transparent mode.

Q: Which serial interfaces are supported?
A: The single serial port is software selectable between RS-232, RS-422 and RS-485, with baud rates from 50 bps to 921.6 kbps.

Q: What power input does it need?
A: It accepts 12 to 48 VDC via a 7-pin terminal block, with redundant dual DC inputs and one relay output.

Q: How is the gateway mounted and configured?
A: It mounts on a DIN rail in an IP30 plastic housing. Configuration is via the web console (HTTP/HTTPS), Device Search Utility, MGate Manager, MCC Tool or Telnet.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
