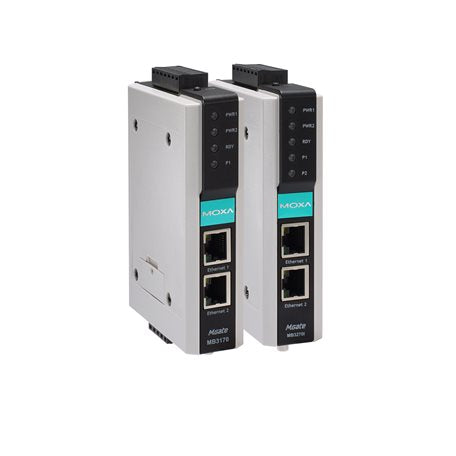

Moxa MGate MB3170-M-SC-T | MGate MB3170 Modbus TCP Gateway, SC Multi-Mode, -40 to 75C

Authorised Moxa Partner

SKU:MGate MB3170-M-SC-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MGate MB3170-M-SC-T is a 1-port advanced Modbus TCP gateway that converts between Modbus TCP and Modbus RTU/ASCII for industrial networks. It features a 100BaseFX multi-mode fibre port with an SC connector for noise-immune, long-distance Ethernet links, a software-selectable RS-232/422/485 serial port, and an extended -40 to 75°C operating temperature range.

Two Ethernet ports allow daisy-chain (cascade) wiring on a single IP address, and the gateway supports up to 32 client and 32 server connections. Security functions include HTTPS (TLS 1.2), SNMPv3 and AES encryption, while hazardous location approvals (ATEX, Class I Division 2, IECEx) and DNV maritime certification suit demanding industrial environments.

Features

- Converts between Modbus TCP and Modbus RTU/ASCII
- Built-in multi-mode fibre port (SC) for noise-immune, long-distance Ethernet links
- Two Ethernet ports for daisy-chain (cascade) wiring with 1 IP address
- Software-selectable RS-232/422/485 serial interface
- Supports up to 32 client and 32 server connections
- Security functions: HTTPS (TLS 1.2), SNMPv3, AES encryption
- Wide-temperature (-40 to 75°C) operation
- Hazardous location approvals (ATEX, Class I Div 2, IECEx) and DNV maritime certification
- Relay output and 1.5 kV magnetic isolation on Ethernet
- Configuration via Web Console, Device Search Utility, MGate Manager, MCC Tool or Telnet

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port (software selectable), DB9 male for RS-232 and terminal block for RS-422/485
- 2 x 10/100BaseT(X) RJ45 ports (1 IP, Ethernet cascade), Auto MDI/MDI-X
- 1 x 100BaseFX multi-mode fibre port (SC connector), OM1 50/125 µm, typical distance 4 km, 1300 nm
- Modbus TCP Client (Master) and Server (Slave); Modbus RTU/ASCII Master and Slave
- Up to 32 client and 32 server connections
- Serial baud rate: 50 bps to 921.6 kbps
- 1.5 kV built-in magnetic isolation on Ethernet ports
- Input voltage: 12 to 48 VDC, 510 mA @ 12 VDC, 7-pin terminal block
- Relay contact rating: 1 A @ 30 VDC resistive load
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- IP30 plastic housing
- Dimensions (with ears): 29 x 89.2 x 124.5 mm
- Weight: 360 g
- MTBF: 1,580,051 hrs (Telcordia SR332)
- Approvals: ATEX, Class I Division 2, IECEx, DNV, UL 508
- 5-year warranty

FAQs

Q: What type of fibre does the MGate MB3170-M-SC-T support?
A: It has a 100BaseFX multi-mode fibre port with an SC connector, designed for OM1 50/125 µm fibre with a typical distance of 4 km at 1300 nm.

Q: Which serial interfaces are available?
A: It has 1 serial port that is software selectable between RS-232, RS-422 and RS-485. RS-232 uses a DB9 male connector and RS-422/485 uses a terminal block.

Q: What Modbus modes does this gateway support?
A: On the Ethernet side it works as a Modbus TCP Client (Master) or Server (Slave). On the serial side it supports Modbus RTU/ASCII Master and Slave.

Q: Can it operate in extreme temperatures?
A: Yes. The -T variant is rated for -40 to 75°C operation, making it suitable for outdoor cabinets and harsh industrial sites.

Q: What power input does it require?
A: It accepts 12 to 48 VDC via a 7-pin terminal block, drawing 510 mA at 12 VDC.

Q: How many connections does the gateway handle?
A: It supports up to 32 client connections and 32 server connections.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
