Moxa MGate EIP3170-T | EtherNet/IP to DF1 Gateway, -40 to 75C

Authorised Moxa Partner

SKU:MGate EIP3170-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

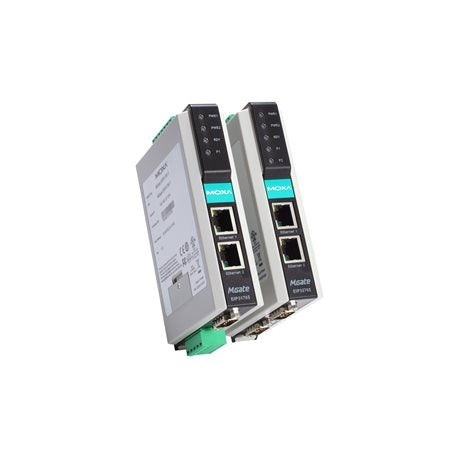

The Moxa MGate EIP3170-T is a 1-port EtherNet/IP to DF1 protocol gateway that lets Rockwell and Allen-Bradley DF1 serial devices connect to EtherNet/IP networks. This wide temperature model operates from -40 to 75°C and uses a non-isolated serial port, making it suited to harsh industrial cabinets and field installations.

The gateway provides one DF1 serial port (RS-232 on a DB9 male connector, RS-422/485 on a terminal block), two 10/100BaseT(X) Ethernet ports and redundant dual 12 to 48 VDC power inputs. It supports PCCC objects, up to 8 simultaneous EtherNet/IP client and server pairs, and includes traffic monitoring tools for faster troubleshooting in an IP30 housing.

Features

- Converts between EtherNet/IP and DF1 protocols
- Supports PCCC objects for Rockwell Automation networks
- 8 simultaneous EtherNet/IP client and server pairs with up to 16 queued requests
- ProCOM support for control via COM port mapping
- Serial redirector keeps the original serial master/slave connection while connecting devices to Ethernet
- EtherNet/IP and DF1 traffic monitor for easier troubleshooting
- Redundant dual DC power inputs
- Wide operating temperature range of -40 to 75°C

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x DF1 serial port (RS-232 DB9 male, RS-422/485 terminal block)
- Serial baudrate: 1200 bps to 921.6 kbps, DF1 full duplex
- 2 x 10/100BaseT(X) Ethernet ports (RJ45), auto MDI/MDI-X
- Magnetic isolation protection: 1.5 kV (built-in)
- Protocol conversion: EtherNet/IP (PCCC) to DF1
- Max. client connections: 8
- Input voltage: 12 to 48 VDC, redundant dual inputs
- Input current: 435 mA @ 12 VDC
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Ingress protection: IP30
- Weight: 360 g (0.79 lb)
- Width: 29 mm
- Configuration: MGate Manager, Telnet Console
- Management: ARP, DHCP Client, SNMPv1, TCP/IP, Telnet, UDP
- EMC/EMI: EN 55032/24, CISPR 32, FCC Part 15B Class A

FAQs

Q: What does the MGate EIP3170-T do?
A: It converts between EtherNet/IP (PCCC) and serial DF1, allowing Rockwell and Allen-Bradley DF1 devices to communicate over EtherNet/IP networks.

Q: What temperature range does the EIP3170-T support?
A: This wide temperature model operates from -40 to 75°C (-40 to 167°F).

Q: Which serial interfaces are available?
A: One serial port supporting RS-232 on a DB9 male connector and RS-422/485 on a terminal block, at baud rates from 1200 bps to 921.6 kbps.

Q: How is the gateway powered?
A: It has redundant dual DC power inputs accepting 12 to 48 VDC, with an input current of 435 mA at 12 VDC.

Q: How many simultaneous connections does it support?
A: It supports up to 8 simultaneous EtherNet/IP client and server connections, with up to 16 queued requests.

Q: How do I configure the gateway?
A: Configuration is done through MGate Manager or the Telnet console.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
