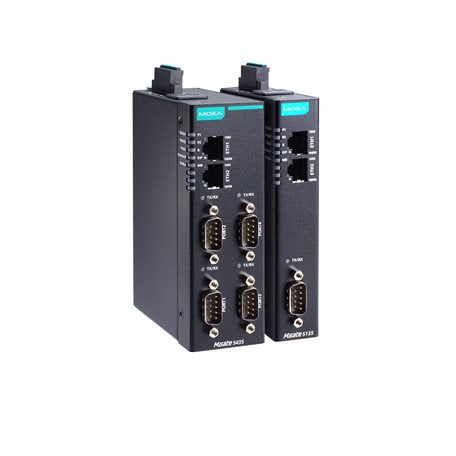

Moxa MGate 5135 | 1-Port Modbus to EtherNet/IP Gateway, -10 to 60°C

Authorised Moxa Partner

SKU:MGate 5135

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate 5135 is a 1-port industrial protocol gateway that converts between Modbus RTU/ASCII/TCP and EtherNet/IP. It acts as a Modbus client and an EtherNet/IP adapter, letting serial and Modbus TCP devices integrate with EtherNet/IP controllers. This standard temperature model operates from -10 to 60°C and suits factory automation, process control and building plant environments.

Housed in a rugged IP30 metal case for DIN-rail mounting, it provides one RS-232/422/485 serial port with 2 kV isolation, two 10/100 Ethernet ports, dual redundant DC power inputs and a relay output. A microSD slot supports configuration backup and duplication, while HTTPS web console configuration and built-in traffic diagnostics simplify commissioning and troubleshooting.

Features

- Protocol conversion between Modbus and EtherNet/IP
- EtherNet/IP adapter support
- Modbus RTU/ASCII/TCP client support
- Ethernet cascading and dual subnet for flexible deployment
- Embedded traffic monitoring and diagnostic information for troubleshooting
- Web-based console configuration with HTTPS, plus offline configuration via CSV file
- microSD card for configuration backup and duplication
- Dual redundant DC power inputs and 1 relay output
- Serial port with 2 kV isolation protection
- Developed according to IEC 62443-4-2 with Secure Boot
- Software-configurable RS-485 pull high/low and termination resistors

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port (DB9 male), 2 kV isolation
- 2 x 10/100BaseT(X) Ethernet ports (RJ45), 1.5 kV magnetic isolation
- Modbus RTU/ASCII/TCP client to EtherNet/IP adapter
- Up to 4 EtherNet/IP scanner connections
- EtherNet/IP input and output data size: 496 bytes per connection (1984 bytes total)
- Modbus TCP: up to 32 server connections, 128 commands
- Modbus RTU/ASCII: up to 128 commands per serial port
- Serial baudrate: 300 bps to 921.6 kbps
- 12 to 48 VDC input, dual redundant power inputs and 1 relay output
- microSD slot for configuration backup, up to 32 GB
- Operating temperature -10 to 60 °C (standard model)
- Metal housing, IP30, DIN-rail mountable
- Dimensions: 25 x 90 x 130 mm, weight 294 g
- MTBF: 1,240,821 hrs (Telcordia SR332)

FAQs

Q: What protocols does the MGate 5135 convert between?
A: It converts between Modbus RTU/ASCII/TCP and EtherNet/IP, operating as a Modbus client and an EtherNet/IP adapter.

Q: How many EtherNet/IP scanners can connect to this gateway?
A: Up to 4 EtherNet/IP scanner connections are supported, each with 496 bytes of input and 496 bytes of output data.

Q: Which serial standards does the serial port support?
A: The DB9 male port supports RS-232, RS-422 and RS-485, with built-in 2 kV isolation and software-configurable RS-485 pull resistors and termination.

Q: What is the operating temperature range of this model?
A: This standard model operates from -10 to 60 °C. It is not the extended temperature variant.

Q: How is the MGate 5135 powered and mounted?
A: It runs on 12 to 48 VDC with dual redundant power inputs and a relay output, and mounts on a DIN rail in an IP30 metal housing.

Q: Can I back up the gateway configuration?
A: Yes. A microSD slot supports configuration backup and duplication, and the web console also supports offline configuration via CSV file.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
