Description

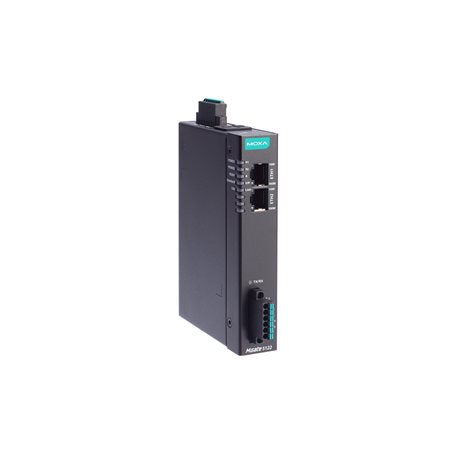

The MGate 5122-T is an industrial CAN to EtherNet/IP protocol gateway that converts CANopen, J1939 and proprietary CAN 2.0A/B into EtherNet/IP. It acts as a CAN master and EtherNet/IP adapter, letting CAN-based machinery and vehicles connect to Rockwell and other EtherNet/IP controllers without custom programming. This -T model is the -40 to 75°C wide temperature version, built for outdoor cabinets, mobile equipment and unheated industrial sites.

The rugged IP30 metal housing mounts on a DIN rail and runs from a 12 to 48 VDC supply. Dual 10/100 Ethernet ports support cascading, configuration is handled through a secure web console with HTTPS, and a microSD slot allows quick configuration backup and duplication across multiple units.

Features

- Simultaneous protocol conversion from CANopen, J1939 and proprietary CAN to EtherNet/IP and SNMP
- EtherNet/IP adapter and SNMP agent support
- Ethernet cascading and dual subnet for flexible deployment
- Embedded traffic monitoring and diagnostics for faster troubleshooting
- Web-based configuration over HTTPS with EDS file import and CANopen auto-scan
- Software-configurable CAN termination resistor
- microSD card for configuration backup and duplication
- Dual redundant DC power inputs and 1 relay output
- CAN port with 2 kV isolation protection
- Complies with IEC 62443-4-2 Security Level 2 requirements
- 40 to 75°C wide operating temperature

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x CAN port (ISO 11898-2, spring-type Euroblock terminal)
- 2 x 10/100BaseT(X) RJ45 Ethernet ports, auto MDI/MDI-X
- Protocols: EtherNet/IP Adapter, CANopen Master, J1939, proprietary CAN 2.0A/B
- CAN baudrate: 10 kbps to 1 Mbps (CANopen and proprietary CAN); 250 kbps, 500 kbps or 1 Mbps (J1939)
- Software-configurable 120 ohm CAN terminator
- CANopen master: up to 64 nodes, 256 RPDOs, 256 TPDOs, SDO supported
- EtherNet/IP adapter: up to 4 scanner connections, 496 bytes per connection input and output
- Up to 2048 bytes input/output for CANopen, J1939 and proprietary CAN
- microSD slot up to 32 GB (SD 2.0 compatible)
- Input voltage: 12 to 48 VDC, 455 mA maximum
- Relay contact rating: resistive load 2 A @ 30 VDC
- IP30 metal housing, DIN-rail mount
- Dimensions: 25 x 90 x 129.6 mm, weight 294 g
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Security: HTTPS (TLS 1.3), AES-128, AES-256, SHA-256, SNMPv3
- Certifications: EN 61010-2-201, UL 61010-2-201, EN 61000-6-2/-6-4, FCC Part 15B Class A
- MTBF: 1,408,984 hours (Telcordia SR-332)

FAQs

Q: What protocols does the MGate 5122-T convert?
A: It converts CANopen (master mode), J1939 and proprietary CAN 2.0A/B to EtherNet/IP, and also provides an SNMP agent.

Q: What is the difference between the MGate 5122-T and the standard MGate 5122?
A: The -T model is the wide-temperature version, rated for operation from -40 to 75°C, which suits harsh outdoor or unheated installations.

Q: Does it act as an EtherNet/IP scanner or adapter?
A: It operates as an EtherNet/IP adapter and supports up to 4 scanner connections, with 496 bytes of input and output per connection.

Q: How many CANopen nodes can it manage?
A: In CANopen master mode it supports up to 64 nodes, with up to 256 RPDOs and 256 TPDOs and SDO communication.

Q: How is the gateway configured and backed up?
A: Configuration is done through the HTTPS web console or the Device Search Utility, with EDS file import and CANopen auto-scan. A microSD slot up to 32 GB lets you back up and duplicate settings.

Q: What power supply does it require?
A: It runs from 12 to 48 VDC with a maximum draw of 455 mA, with dual DC power inputs and a relay output provided on spring-type Euroblock terminals.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
