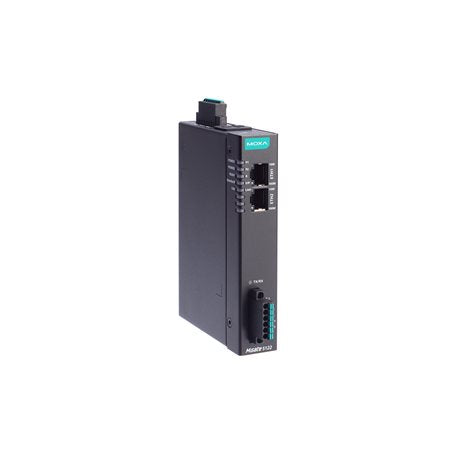

Moxa MGate 5122/KC | MGate 5122 CANopen/J1939 to EtherNet/IP Gateway, KC, -10 to 60°C

Authorised Moxa Partner

SKU:MGate 5122/KC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate 5122/KC is a 1-port CANopen/J1939 to EtherNet/IP protocol gateway that converts CANopen, J1939 and raw CAN 2.0A/B traffic so it can be exchanged with an EtherNet/IP scanner. It acts as a CAN master and suits industrial automation sites that need to bring CAN-based equipment into an EtherNet/IP network. This KC certified variant operates across -10 to 60°C.

The gateway features a CAN port with 2 kV isolation, dual redundant DC power inputs and a relay output in a compact metal DIN-rail housing. Configuration is handled through a built-in web console with EDS file import and auto-scan of CANopen devices, and the unit is developed according to IEC 62443-4-2 with Secure Boot.

Features

- Converts CANopen, J1939 and raw CAN 2.0A/B to EtherNet/IP
- Operates as a CAN master exchanging data with an EtherNet/IP scanner
- 2 kV isolation protection on the CAN port
- Dual redundant DC power inputs and 1 relay output
- Developed according to IEC 62443-4-2 with Secure Boot
- Web console configuration with no extra utility needed
- EDS file import and auto-scan of CANopen devices
- Software-configurable CAN bus termination resistor
- Rugged compact metal housing, DIN-rail mountable

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x CAN port with 2 kV isolation
- CANopen / J1939 / CAN 2.0A/B to EtherNet/IP
- Operating temperature: -10 to 60°C (14 to 140°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Dual redundant DC power inputs and 1 relay output
- Metal housing, DIN-rail mountable
- Optional wall-mounting kit
- Safety: EN 61010-2-201, UL 61010-2-201
- EMC: EN 61000-6-2/-6-4, FCC Part 15B Class A
- ESD: Contact 8 kV, Air 15 kV (IEC 61000-4-2)
- MTBF: 1,408,984 hrs (Telcordia SR332)
- KC certified variant

FAQs

Q: What protocols does the MGate 5122/KC convert?
A: It converts CANopen, J1939 and raw CAN (CAN 2.0A/B) to EtherNet/IP, acting as a CAN master that exchanges data with an EtherNet/IP scanner.

Q: What is the operating temperature range of this model?
A: This standard-temperature variant operates from -10 to 60°C (14 to 140°F).

Q: What does the /KC suffix mean?
A: The /KC model is the KC certified variant of the MGate 5122, intended for deployments that require Korean KC certification.

Q: How is the gateway configured?
A: Configuration is done through the built-in web console, with EDS file import and auto-scan of CANopen devices. No extra utility is required.

Q: Does it support redundant power?
A: Yes. It provides dual redundant DC power inputs and 1 relay output.

Q: How is the unit mounted?
A: It has a compact metal housing that mounts on a DIN rail, and an optional wall-mounting kit is available.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
