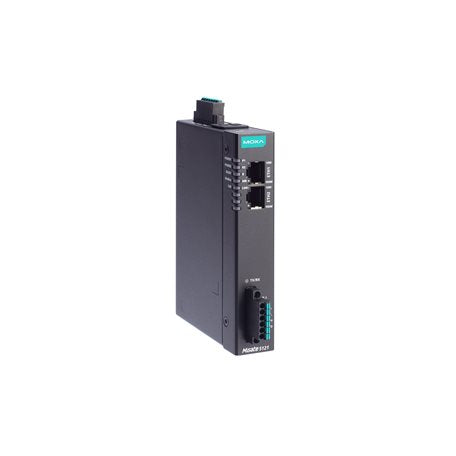

Moxa MGate 5121-T | MGate 5121 CAN to Modbus TCP Gateway, -40 to 75°C

Authorised Moxa Partner

SKU:MGate 5121-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate 5121-T is a 1-port industrial CAN to Modbus TCP protocol gateway that converts CANopen, J1939 and proprietary CAN (CAN 2.0A/B) data to Modbus TCP and SNMP. This wide-temperature model operates from -40 to 75°C, making it suited to harsh factory, transport, energy and outdoor cabinet deployments where standard gateways would fail.

Built into a compact, DIN-rail-mountable metal housing, the gateway provides two 10/100BaseT(X) Ethernet ports with Ethernet cascading, dual redundant DC power inputs, a relay output and a microSD slot for configuration backup and duplication. Web-based configuration with HTTPS, EDS file import and auto-scan of CANopen devices simplify commissioning, while embedded traffic monitoring speeds up troubleshooting.

Features

- Simultaneous protocol conversion from CANopen, J1939 and proprietary CAN to Modbus TCP and SNMP
- Flexible deployment with Ethernet cascading and dual subnet
- Embedded traffic monitoring and diagnostic information for easy troubleshooting
- Web-based console configuration with HTTPS encryption
- EDS file import and auto-scan of CANopen devices
- Software-configurable CAN bus termination resistor
- Security: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3)

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x CAN port, spring-type Euroblock terminal, ISO 11898-2
- 2 x 10/100BaseT(X) Ethernet ports (RJ45) with 1.5 kV magnetic isolation
- CAN baud rates: 10 kbps to 1 Mbps (CANopen/proprietary CAN); 250 kbps, 500 kbps, 1 Mbps (J1939)
- CAN termination: 120 ohm, software configurable
- CAN port with 2 kV isolation protection
- CANopen master and J1939 support; up to 64 nodes; 256 Receive PDOs / 256 Transmit PDOs
- Modbus TCP Server (Slave) and SNMP Agent
- Input data size 2048 bytes; output data size 2048 bytes
- microSD slot for configuration backup/duplication
- Dual redundant DC power inputs and 1 relay output
- Operating temperature: -40 to 75°C
- Dimensions: 25 x 90 x 129.6 mm
- Weight: 294 g

FAQs

Q: Which protocols does the MGate 5121-T convert?
A: It converts CANopen, J1939 and proprietary CAN (CAN 2.0A/B) data to Modbus TCP and SNMP, allowing CAN devices to be integrated into Modbus TCP and network management systems.

Q: What is the difference between the MGate 5121-T and the standard MGate 5121?
A: The -T model is the wide-temperature version, rated for operation from -40 to 75°C, for harsh environments with extreme heat or cold.

Q: How many CAN nodes does it support?
A: It supports up to 64 CANopen nodes, with 256 Receive PDOs and 256 Transmit PDOs. Input and output data sizes are 2048 bytes each.

Q: What CAN baud rates are supported?
A: CANopen and proprietary CAN support 10 kbps to 1 Mbps. J1939 supports 250 kbps, 500 kbps and 1 Mbps. A 120 ohm termination resistor is software configurable.

Q: How is the gateway configured and backed up?
A: Configuration is done through a web-based console with HTTPS encryption. EDS files can be imported and CANopen devices auto-scanned. The microSD slot allows configuration backup and duplication across units.

Q: What power and mounting options does it offer?
A: It has dual redundant DC power inputs and a relay output, and mounts on a DIN rail in a compact metal housing measuring 25 x 90 x 129.6 mm.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
