Description

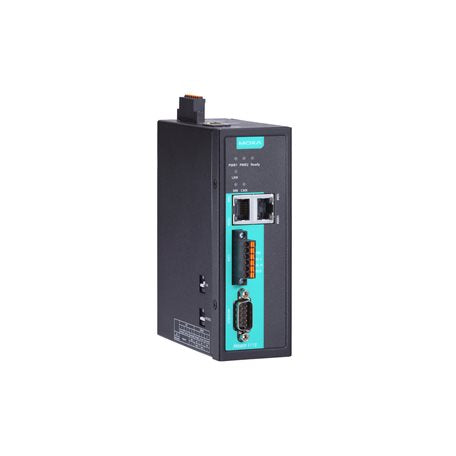

The Moxa MGate 5118-T is a 1-port CAN J1939 protocol gateway that converts J1939 data to Modbus RTU/ASCII/TCP, PROFINET IO device or EtherNet/IP. This -T model is built for harsh environments, operating across a -40 to 75°C wide temperature range in a metal IP30 DIN-rail housing.

The gateway supports Modbus master/client and slave/server modes, EtherNet/IP Scanner and Adapter, and PROFINET IO Device operation, so engine, generator and heavy-equipment data can reach PLCs and SCADA systems over Ethernet. Two 10/100 Ethernet ports allow easy cascading, a web-based wizard simplifies setup, and a microSD slot supports configuration backup and event logging.

Features

- Converts J1939 to Modbus, PROFINET, or EtherNet/IP
- Supports Modbus RTU/ASCII/TCP master/client and slave/server
- Supports EtherNet/IP Adapter and PROFINET IO device
- Web-based configuration wizard
- Built-in Ethernet cascading for easy wiring
- Embedded traffic monitoring and diagnostic information
- microSD card for configuration backup, duplication and event logs
- CAN bus and serial port with 2 kV isolation protection
- 40 to 75°C wide operating temperature

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x CAN (J1939) port, 2 kV isolation
- CAN baudrate: 250 Kbps, 500 Kbps, 1 Mbps
- CAN terminator: 120 ohms
- 2 x 10/100BaseT(X) RJ45 Ethernet ports, auto MDI/MDI-X
- Magnetic isolation protection: 1.5 kV (built-in)
- Modbus RTU/ASCII/TCP master/client and slave/server
- PROFINET IO Device, 1 IO controller connection, 512 bytes input and 512 bytes output
- EtherNet/IP Scanner and Adapter, 496 bytes input and 496 bytes output
- Max. no. of commands: 256
- Input data size: 2048 bytes, output data size: 2048 bytes
- microSD slot: up to 32 GB (SD 2.0 compatible)
- Input voltage: 12 to 48 VDC, 416 mA @ 12 VDC
- Power connector: spring-type Euroblock terminal
- Relay contact rating: 2 A @ 30 VDC resistive load
- Metal housing, IP30, DIN-rail mounting
- Weight: 589 g (1.30 lb)
- Operating temperature: -40 to 75°C (-40 to 167°F)
- MTBF: 727,873 h

FAQs

Q: What protocols does the MGate 5118-T convert J1939 to?
A: It converts J1939 data to Modbus RTU/ASCII/TCP, PROFINET IO device or EtherNet/IP, with support for both scanner and adapter roles on EtherNet/IP.

Q: What is the difference between the MGate 5118-T and the standard MGate 5118?
A: The -T model supports a -40 to 75°C wide operating temperature range, suiting outdoor cabinets and harsh industrial environments.

Q: How is the MGate 5118-T powered?
A: It accepts a 12 to 48 VDC input through a spring-type Euroblock terminal, drawing 416 mA at 12 VDC.

Q: What CAN baud rates does it support?
A: The CAN port supports 250 Kbps, 500 Kbps and 1 Mbps, with a built-in 120 ohm terminator and 2 kV isolation.

Q: Can I back up the gateway configuration?
A: Yes. The microSD slot accepts cards up to 32 GB for configuration backup and duplication as well as event logs.

Q: How is the MGate 5118-T mounted?
A: It has a metal IP30 housing designed for DIN-rail mounting.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
