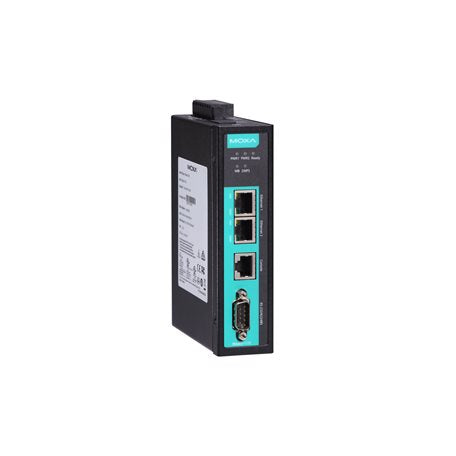

Moxa MGate 5109 | Modbus to DNP3 Gateway, 1-Port, 0-60°C

Authorised Moxa Partner

SKU:MGate 5109

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate 5109 is a 1-port industrial Modbus to DNP3 gateway that converts between Modbus RTU/ASCII/TCP and DNP3 serial/TCP/UDP. It supports both master/client and slave/server roles on the Modbus side and master and outstation (Level 2) roles on the DNP3 side, making it well suited to power, oil and gas, and water applications. This standard temperature model operates from 0 to 60°C.

The gateway offers one RS-232/422/485 serial port with 2 kV isolation and two 10/100BaseT(X) Ethernet ports with built-in cascading for simple daisy-chain wiring. A rugged IP30 metal housing with DIN-rail mounting, redundant 12 to 48 VDC power inputs and a relay output make it suitable for control cabinet installation. A microSD slot supports configuration backup and event logs, and HTTPS and SSH provide encrypted management.

Features

- Converts between Modbus RTU/ASCII/TCP and DNP3 serial/TCP/UDP
- Supports DNP3 master and outstation operation (Level 2)
- DNP3 master mode supports up to 26600 points
- Time synchronisation through DNP3
- Web-based wizard for easy configuration
- Built-in Ethernet cascading for simple wiring
- Embedded traffic monitoring and diagnostics for troubleshooting
- microSD card for configuration backup, duplication and event logs
- Redundant dual DC power inputs and relay output
- 2 kV serial isolation protection
- Transparent mode and agent mode (data concentrator) operation
- HTTPS and SSH encrypted communication

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port (DB9 male), 2 kV isolation
- 2 x 10/100BaseT(X) Ethernet ports (RJ45), built-in cascading, 1.5 kV magnetic isolation
- Modbus RTU/ASCII/TCP master/client and slave/server to DNP3 serial/TCP/UDP master and outstation (Level 2)
- Serial baud rate: 50 bps to 921.6 kbps
- Input voltage: 12 to 48 VDC, redundant dual inputs, 455 mA @ 12 VDC
- Relay output: 2 A @ 30 VDC resistive load
- microSD slot up to 32 GB
- Metal housing, IP30, DIN-rail mount
- Dimensions: 36 x 105 x 140 mm, weight 507 g
- Operating temperature: 0 to 60°C, storage -40 to 85°C
- Safety and approvals: EN 62368-1, UL 508, ATEX, Class I Division 2, IECEx

FAQs

Q: What protocols does the MGate 5109 convert between?
A: It converts between Modbus RTU/ASCII/TCP (master/client and slave/server) and DNP3 serial/TCP/UDP (master and outstation, Level 2).

Q: What is the operating temperature range of this model?
A: This is the standard temperature model rated for 0 to 60°C. It is not the extended temperature T variant.

Q: How is the MGate 5109 powered?
A: It accepts 12 to 48 VDC through redundant dual power inputs on a screw-fastened Euroblock terminal, and includes a relay output for alarms.

Q: Does it support serial isolation?
A: Yes. The single RS-232/422/485 DB9 serial port has built-in 2 kV isolation, and the Ethernet ports have 1.5 kV magnetic isolation.

Q: How is the gateway configured?
A: Configuration is available through a web console (HTTP/HTTPS) with a wizard, the Device Search Utility, Telnet, SSH or the serial console. A microSD card can back up and duplicate configurations.

Q: How is the MGate 5109 mounted?
A: It has a metal IP30 housing designed for DIN-rail mounting, and a DIN-rail kit is included in the package.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
