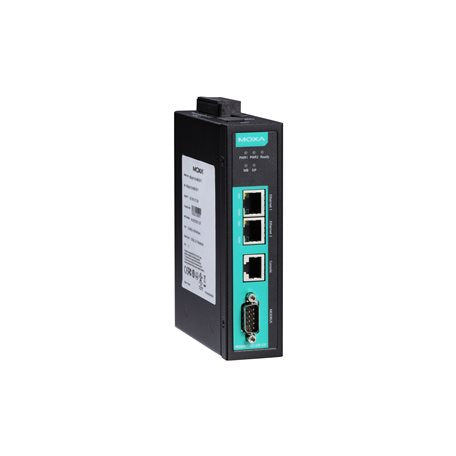

Moxa MGate 5105-MB-EIP-T | MGate 5105 Modbus to EtherNet/IP Gateway, MQTT, -40 to 75°C

Authorised Moxa Partner

SKU:MGate 5105-MB-EIP-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MGate 5105-MB-EIP-T is a wide-temperature industrial protocol gateway that converts Modbus RTU, ASCII and TCP to EtherNet/IP, with MQTT support for cloud connectivity. It operates across -40 to 75°C, making it suited to outdoor cabinets, factory floors and other harsh environments where serial Modbus devices need to join an EtherNet/IP network.

The gateway combines a 2 kV isolated RS-232/422/485 serial port with two 10/100 Mbps Ethernet ports with built-in cascading, redundant 12 to 48 VDC power inputs and a metal IP30 housing. It can act as an EtherNet/IP Scanner or Adapter, and a microSD slot supports configuration backup, event logs and data buffering when the cloud connection is lost.

Features

- Converts Modbus RTU/ASCII/TCP to EtherNet/IP as Scanner or Adapter
- MQTT v3.1.1 with TLS encryption for cloud connectivity
- Wide-temperature -40 to 75°C operation
- 2 kV serial isolation protection
- Redundant dual DC power inputs and 1 relay output
- Dual Ethernet ports with built-in cascading
- microSD backup for configuration, logs and buffered data
- I/O data mapping and I/O data view for real-time monitoring
- Web-based configuration via HTTP/HTTPS and MGate Manager

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port (DB9 male) with 2 kV isolation
- 2 x 10/100BaseT(X) Ethernet ports (RJ45) with built-in cascading
- Modbus RTU/ASCII Master or Slave and Modbus TCP Client or Server
- EtherNet/IP Scanner or Adapter, 496 bytes input and 496 bytes output
- EtherNet/IP adapter connections: up to 100
- MQTT with TLS 1.0-1.2 encryption, up to 300 data tags
- Serial baudrate: 50 bps to 921.6 kbps
- Input voltage: 12 to 48 VDC redundant dual inputs
- Operating temperature: -40 to 75°C (-40 to 167°F)
- microSD slot up to 32 GB
- Metal housing, IP30
- Dimensions: 36 x 105 x 140 mm, weight 507 g

FAQs

Q: What protocols does the MGate 5105-MB-EIP-T convert between?
A: It converts Modbus RTU, ASCII and TCP to EtherNet/IP, and can operate as an EtherNet/IP Scanner or Adapter. It also publishes data to MQTT brokers.

Q: What is the operating temperature range?
A: This -T model operates from -40 to 75°C (-40 to 167°F), suitable for harsh industrial environments.

Q: Which serial interfaces are supported?
A: The single DB9 male port supports RS-232, RS-422 and RS-485, with 2 kV built-in isolation and automatic data direction control for RS-485.

Q: Does it support secure MQTT connections?
A: Yes. MQTT connections support TLS 1.0, 1.1 and 1.2 encryption using your own root CA, client certificate and private key.

Q: What power input does it require?
A: It accepts 12 to 48 VDC through a screw-fastened Euroblock terminal, with redundant dual power inputs.

Q: What is the microSD slot used for?
A: It supports cards up to 32 GB for configuration backup and duplication, event logs, and data buffering when the cloud connection is lost.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
