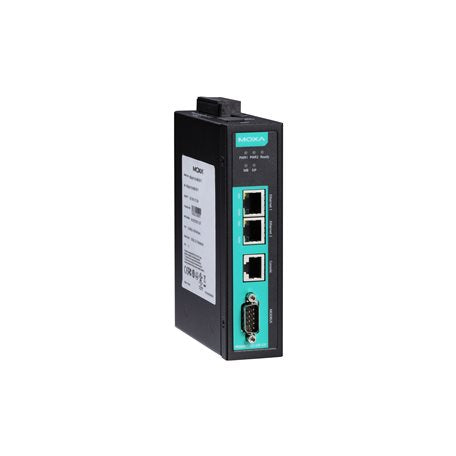

Moxa MGate 5105-MB-EIP | MGate 5105 Modbus to EtherNet/IP Gateway, MQTT, 0-60°C

Authorised Moxa Partner

SKU:MGate 5105-MB-EIP

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate 5105-MB-EIP is a 1-port industrial protocol gateway that converts Modbus RTU/ASCII/TCP to EtherNet/IP, letting serial and Modbus TCP devices communicate with EtherNet/IP networks. It acts as a Modbus master or slave, Modbus TCP client or server, and EtherNet/IP scanner or adapter, and also supports MQTT with TLS for cloud connectivity including Azure IoT Hub and Alibaba IoT Platform. This is the standard 0 to 60°C temperature model.

A DB9 serial port (RS-232/422/485) with 2 kV isolation and dual 10/100 Ethernet ports are housed in a compact metal, IP30, DIN-rail mount enclosure powered from 12 to 48 VDC. A microSD slot supports configuration backup, event logs and data buffering, and built-in traffic monitoring and diagnostics help with troubleshooting.

Features

- Converts Modbus RTU/ASCII/TCP to EtherNet/IP
- MQTT connection with TLS and certificates, in JSON and raw data formats
- Traffic monitoring and diagnostic information built in for easier troubleshooting
- microSD card for configuration backup/duplication, event logs and data buffering when the cloud connection is lost
- 2 kV isolation protection on the serial port
- Security features based on IEC 62443
- Redundant power inputs

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port (DB9 male), 50 bps to 921.6 kbps
- 2 x 10/100BaseT(X) Ethernet ports (RJ45), auto MDI/MDI-X
- Modbus RTU/ASCII Master/Slave and Modbus TCP Client/Server
- EtherNet/IP Scanner and Adapter
- MQTT v3.1.1 with TLS, Azure IoT Hub and Alibaba IoT Platform support
- Up to 300 MQTT data tags
- microSD slot up to 32 GB
- Serial isolation 2 kV, Ethernet magnetic isolation 1.5 kV
- Input voltage 12 to 48 VDC
- Operating temperature 0 to 60°C
- Metal housing, IP30, DIN-rail mount
- Dimensions 36 x 105 x 140 mm, weight 507 g

FAQs

Q: What protocols does the MGate 5105-MB-EIP convert between?
A: It converts Modbus RTU/ASCII (master or slave) and Modbus TCP (client or server) to EtherNet/IP (scanner or adapter), and also supports MQTT for cloud connectivity.

Q: What serial interfaces does it support?
A: It has one DB9 male serial port supporting RS-232, RS-422 and RS-485, with baud rates from 50 bps to 921.6 kbps and 2 kV isolation.

Q: Can it connect to cloud platforms?
A: Yes. It supports MQTT v3.1.1 with TLS, including Azure IoT Hub and Alibaba IoT Platform device modes, with data in JSON or raw format.

Q: What is the operating temperature range of this model?
A: This is the standard model, rated for 0 to 60°C operation.

Q: What is the microSD slot used for?
A: It supports cards up to 32 GB for configuration backup and duplication, event logs, and data buffering when the cloud connection is lost.

Q: How is it powered and mounted?
A: It runs from 12 to 48 VDC through a screw-fastened Euroblock terminal and mounts on a DIN rail using the included kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
