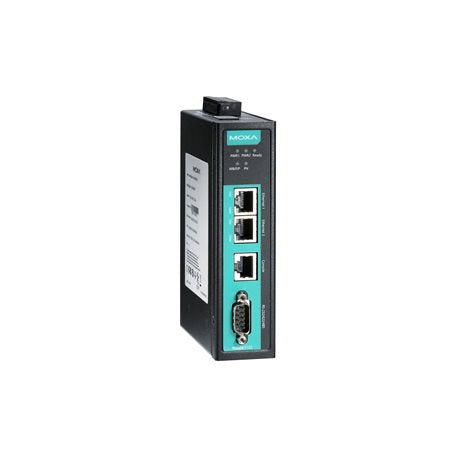

Moxa MGate 5103-T | MGate 5103 Modbus/EtherNet/IP-to-PROFINET Gateway, -40 to 75°C

Authorised Moxa Partner

SKU:MGate 5103-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate 5103-T is a 1-port industrial protocol gateway that converts Modbus RTU/ASCII/TCP and EtherNet/IP to a PROFINET IO device. This wide-temperature -T model operates from -40 to 75°C, making it suited to harsh plant floors, outdoor cabinets and unconditioned enclosures where standard gateways would fail.

Built-in 2 kV isolation on the RS-232/422/485 serial interface protects connected devices, while web-based configuration, Device Search Utility and secure management protocols simplify commissioning and ongoing maintenance. It allows serial Modbus devices and EtherNet/IP equipment to integrate with PROFINET controllers without changing existing field equipment.

Features

- Converts between Modbus RTU/ASCII/TCP, EtherNet/IP and PROFINET
- Wide operating temperature range of -40 to 75°C
- Built-in 2 kV serial isolation
- Automatic Data Direction Control (ADDC) for RS-485
- Configurable pull-high/low resistors and 120 ohm terminator for RS-485
- Web-based configuration and Device Search Utility

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1-port Modbus/EtherNet/IP-to-PROFINET gateway
- Operating temperature -40 to 75°C
- Protocols: PROFINET IO Device, Modbus TCP Client/Server, EtherNet/IP Adapter
- Modbus RTU/ASCII serial support
- Serial interface: RS-232/422/485 with 2 kV built-in isolation
- Modbus TCP: 16 client connections, 32 server connections, 128 commands
- Input data 512 bytes, output data 512 bytes
- Management: Web console (HTTP/HTTPS), Telnet, SSH, SNMPv1/v2c/v3, Device Search Utility
- Security: HTTPS (TLS 1.3), SNMPv3, AES-128/256, SHA-256
- MTBF 859,422 hrs (Telcordia SR332)

FAQs

Q: What protocols does the MGate 5103-T convert between?
A: It converts between Modbus RTU/ASCII/TCP, EtherNet/IP and PROFINET, acting as a PROFINET IO device.

Q: What is the operating temperature range?
A: The -T model operates from -40 to 75°C, suitable for harsh industrial environments.

Q: Which serial interfaces are supported?
A: The serial port supports RS-232, RS-422 and RS-485 with 2 kV built-in isolation.

Q: How many Modbus TCP connections does it support?
A: It supports up to 16 client connections and 32 server connections, with up to 128 commands.

Q: How is the gateway configured and secured?
A: Configuration is through the web console, Telnet, SSH, SNMP or the Device Search Utility. Security features include HTTPS (TLS 1.3), SNMPv3, AES-128/256 and SHA-256.

Q: How much process data can it handle?
A: The gateway supports 512 bytes of input data and 512 bytes of output data.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
