Moxa MGate 5103 | Modbus/EtherNet/IP to PROFINET Gateway, 0-60C

Authorised Moxa Partner

SKU:MGate 5103

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

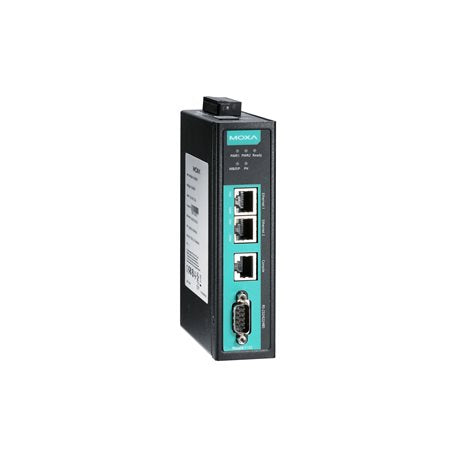

The Moxa MGate 5103 is an industrial protocol gateway that converts Modbus RTU/ASCII/TCP or EtherNet/IP to PROFINET. It acts as a Modbus master/client or slave/server, or as an EtherNet/IP adapter, and exchanges data with a PROFINET IO controller as an IO device. This is the standard temperature model rated for 0 to 60°C, suited to control cabinet and factory floor deployments.

The gateway provides two 10/100BaseT(X) Ethernet ports with built-in cascading and one RS-232/422/485 serial port with 2 kV isolation. Redundant 12 to 48 VDC power inputs, a relay output and a microSD slot for configuration backup and event logs support reliable operation. The metal IP30 housing is DIN-rail mountable, and configuration is handled through a web-based wizard with GSDML export.

Features

- Converts Modbus or EtherNet/IP to PROFINET
- Supports PROFINET IO device mode
- Supports Modbus RTU/ASCII/TCP master/client and slave/server
- Supports EtherNet/IP Adapter mode
- Web-based configuration wizard with GSDML export
- Built-in Ethernet cascading for simpler wiring
- Embedded traffic monitoring and diagnostics for troubleshooting and cloud data transmission
- microSD card for configuration backup and duplication, event logs and data buffering when the cloud connection is lost
- Status monitoring and fault protection for easier maintenance
- 2 kV isolation protection on the serial port
- Redundant dual DC power inputs and 1 relay output
- HTTPS (TLS 1.3), AES-128/256, SHA-256 and SNMPv3 security support

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 10/100BaseT(X) Ethernet ports (RJ45), Auto MDI/MDI-X, 1.5 kV magnetic isolation
- 1 x RS-232/422/485 serial port (DB9 male), 2 kV isolation
- Serial baudrate: 50 bps to 921.6 kbps
- Ethernet protocols: PROFINET IO Device, Modbus TCP Client (Master), Modbus TCP Server (Slave), EtherNet/IP Adapter
- Modbus RTU/ASCII master and slave modes, up to 128 commands
- Modbus TCP: up to 16 client connections and 32 server connections
- PROFINET IO Device: 512 bytes input and 512 bytes output data
- EtherNet/IP Adapter: 496 bytes input and 496 bytes output data
- microSD slot up to 32 GB
- Power input: 12 to 48 VDC, redundant dual inputs, 455 mA @ 12 VDC
- 1 relay output, 2 A @ 30 VDC resistive load
- Metal housing, IP30, DIN-rail mountable
- Dimensions: 36 x 105 x 140 mm, weight 507 g
- Operating temperature: 0 to 60°C
- Hazardous locations: ATEX, Class I Division 2, IECEx
- MTBF: 859,422 hrs (Telcordia SR332)

FAQs

Q: What protocols does the MGate 5103 convert between?
A: It converts Modbus RTU/ASCII/TCP or EtherNet/IP to PROFINET. On the PROFINET side it operates as an IO device connected to an IO controller.

Q: Can the MGate 5103 act as a Modbus master and a Modbus slave?
A: Yes. It supports Modbus RTU/ASCII master and slave modes on the serial port, and Modbus TCP client (master) and server (slave) modes on Ethernet.

Q: What serial interfaces does it support?
A: It has one DB9 male serial port supporting RS-232, RS-422 and RS-485, with 2 kV isolation and baudrates from 50 bps to 921.6 kbps.

Q: What is the operating temperature range of this model?
A: This standard model operates from 0 to 60°C. A wide-temperature variant is available separately as the MGate 5103-T.

Q: How is the MGate 5103 powered?
A: It accepts 12 to 48 VDC through a screw-fastened Euroblock terminal, with redundant dual power inputs and one relay output.

Q: How do I configure the gateway for a PROFINET controller?
A: Configuration is done through the web console wizard, which can export a GSDML file for import into your PROFINET engineering tool. A Device Search Utility and Telnet console are also available.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
