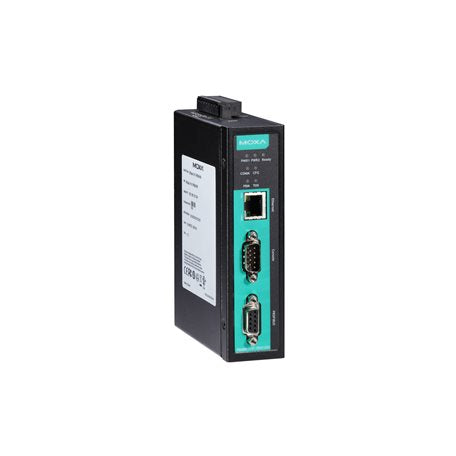

Moxa MGate 5101-PBM-MN-T | MGate 5101 PROFIBUS Master to Modbus TCP Gateway, -40 to 75°C

Authorised Moxa Partner

SKU:MGate 5101-PBM-MN-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The MGate 5101-PBM-MN-T is a 1-port industrial protocol gateway that connects a PROFIBUS DP-V1 master to Modbus TCP client or server networks. It suits factory and process automation sites where PROFIBUS devices need to share data with Modbus TCP SCADA, PLC or HMI systems over Ethernet. This -T model operates across a wide -40 to 75°C temperature range, accepts a 12 to 48 VDC power input and provides 2 kV isolation on the PROFIBUS port.

The gateway supports Modbus TCP Client (Master) and Server (Slave) modes, with up to 1536 bytes of input and output data on both the PROFIBUS and Modbus TCP sides. It is housed in a rugged metal IP30 enclosure carrying ATEX, Class I Division 2 and IECEx hazardous location approvals. Configuration is available through a web console, Device Search Utility, MGate Manager or Telnet and serial console, with secure management over HTTPS (TLS 1.3) and SNMPv3.

Features

- Converts between PROFIBUS DP-V1 Master and Modbus TCP Client/Server
- Wide operating temperature range of -40 to 75°C
- Built-in 2 kV isolation on the PROFIBUS port and 1.5 kV magnetic isolation on Ethernet
- Secure management over HTTPS (TLS 1.3) and SNMPv3
- Configuration through web console, DSU, MGate Manager or Telnet/serial console
- Hazardous location approvals (ATEX, Class I Div 2, IECEx)
- Rugged metal IP30 housing

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x PROFIBUS DP-V1 Master port (DB9 female, 9600 bps to 12 Mbps, 2 kV isolation)
- 1 x 10/100BaseT(X) Ethernet port (RJ45, auto MDI/MDI-X)
- Ethernet magnetic isolation protection: 1.5 kV
- Modbus TCP Client (Master) and Server (Slave)
- Modbus TCP functions supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
- Modbus TCP max client connections: 16
- Modbus TCP max server connections: 32
- Modbus TCP max commands: 100
- Modbus TCP input and output data size: 1536 bytes each
- PROFIBUS input and output data size: 1536 bytes each
- Console port: RS-232 (DB9 male, 115200, n, 8, 1)
- Input voltage: 12 to 48 VDC
- Input current: 365 mA @ 12 VDC
- Power connector: Screw-fastened Euroblock terminal
- Relay contact current rating: resistive load 2 A @ 30 VDC
- Housing: metal, IP30
- Dimensions: 36 x 105 x 140 mm
- Weight: 500 g
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Ambient relative humidity: 5 to 95% (non-condensing)
- Hazardous locations: ATEX, Class I Division 2, IECEx
- MTBF: 1,082,881 hrs (Telcordia SR332)

FAQs

Q: What does the MGate 5101-PBM-MN-T connect?
A: It connects a PROFIBUS DP-V1 master to Modbus TCP networks, acting as either a Modbus TCP client (master) or server (slave).

Q: How does the -T model differ from the standard model?
A: The -T model has a wide operating temperature range of -40 to 75°C, suited to harsh industrial environments.

Q: What power input does it require?
A: It accepts 12 to 48 VDC through a screw-fastened Euroblock terminal, drawing 365 mA at 12 VDC.

Q: How is the gateway configured?
A: Configuration is available through the web console (HTTP/HTTPS), Device Search Utility (DSU), MGate Manager, or a Telnet or serial console.

Q: Is it approved for hazardous locations?
A: Yes, it carries ATEX, Class I Division 2 and IECEx hazardous location approvals.

Q: How much data can it exchange?
A: It supports up to 1536 bytes of input data and 1536 bytes of output data on both the PROFIBUS and Modbus TCP sides.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
