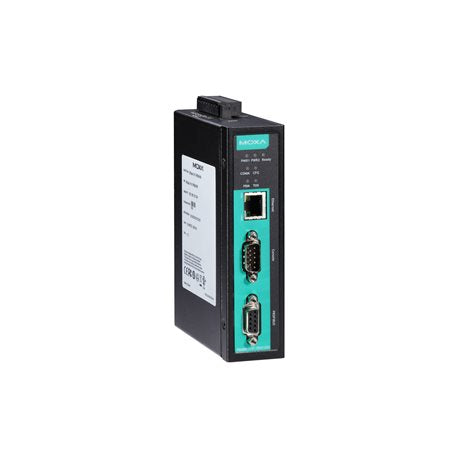

The MGate 5101-PBM-MN is a PROFIBUS DP-V1 master to Modbus TCP gateway that lets PROFIBUS devices communicate with Modbus TCP client and server systems. This standard temperature model operates from 0 to 60°C and is built into a rugged IP30 metal housing for DIN-rail mounting in control cabinets and industrial panels.

It provides one PROFIBUS DB9 port with 2 kV isolation and one 10/100BaseT(X) Ethernet port, with redundant dual 12 to 48 VDC power inputs and a relay output. Automatic scanning of PROFIBUS devices, web-based I/O data visualisation and built-in traffic diagnostics simplify commissioning and troubleshooting. ATEX, Class I Division 2 and IECEx approvals support use in hazardous locations.

Features

- Protocol conversion between PROFIBUS DP-V1 master and Modbus TCP
- Supports Modbus TCP client and server modes
- Automatic scan of PROFIBUS devices for easy configuration
- Web-based GUI for I/O data visualisation
- Embedded traffic monitoring and diagnostic information for easier troubleshooting
- Status monitoring and fault protection for easy maintenance
- Redundant dual DC power inputs and 1 relay output
- Serial port with 2 kV isolation protection
- Security features based on IEC 62443, including HTTPS (TLS 1.3) and SNMPv3
- Configuration via web console, Device Search Utility, MGate Manager or Telnet

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x PROFIBUS DP-V1 Master port, DB9 female, 9600 bps to 12 Mbps, 2 kV isolation
- 1 x 10/100BaseT(X) Ethernet port, RJ45, auto MDI/MDI-X, 1.5 kV magnetic isolation
- Modbus TCP Client (Master) and Server (Slave)
- Modbus functions supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
- Up to 16 client connections and 32 server connections, up to 100 commands
- Modbus and PROFIBUS input and output data size: 1536 bytes each
- Input voltage: 12 to 48 VDC redundant dual inputs, 365 mA @ 12 VDC
- Power connector: screw-fastened Euroblock terminal
- Relay output rated 2 A @ 30 VDC resistive load
- RS-232 console port, DB9 male, 115200 baud
- Housing: IP30 metal, DIN-rail mountable
- Dimensions: 36 x 105 x 140 mm, weight 500 g
- Operating temperature: 0 to 60°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- Hazardous locations: ATEX, Class I Division 2, IECEx
- MTBF: 1,082,881 hrs (Telcordia SR332)

FAQs

Q: What does the MGate 5101-PBM-MN do?
A: It converts between PROFIBUS DP-V1 and Modbus TCP. It acts as a PROFIBUS master on the serial side and can operate as a Modbus TCP client or server on the Ethernet side.

Q: What operating temperature does this model support?
A: This is the standard model, rated for 0 to 60°C. It is not the wide-temperature (-T) variant.

Q: What power supply does it require?
A: It runs from 12 to 48 VDC and has redundant dual power inputs, so it can be connected to two independent DC sources.

Q: How many Modbus TCP connections are supported?
A: It supports up to 16 client connections and 32 server connections, with up to 100 commands.

Q: Can it be mounted in a hazardous location?
A: Yes. It carries ATEX, Class I Division 2 and IECEx approvals, and has an IP30 metal housing with DIN-rail mounting.

Q: How is the gateway configured?
A: Configure it using the web console (HTTP/HTTPS), the Device Search Utility, MGate Manager or the Telnet console. It can also automatically scan PROFIBUS devices to simplify setup.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
