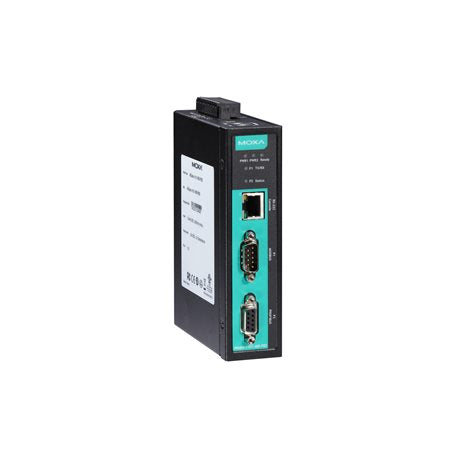

Moxa MGate 4101I-MB-PBS-T | MGate 4101I Modbus-to-PROFIBUS Gateway, 2 kV, -40 to 75C

Authorised Moxa Partner

SKU:MGate 4101I-MB-PBS-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa MGate 4101I-MB-PBS-T is a 1-port industrial Modbus-to-PROFIBUS gateway that converts Modbus RTU/ASCII (master or slave) to a PROFIBUS DP-V0 slave. It adds 2 kV serial isolation and a -40 to 75C wide-temperature rating, making it well suited to harsh factory, process and utility environments where Modbus devices need to join a PROFIBUS network.

The gateway provides one RS-232/422/485 serial port and one PROFIBUS DP-V0 slave port running from 9600 bps to 12 Mbps. It is powered from 12 to 48 VDC, housed in a compact metal enclosure for DIN rail or panel mounting, and configured with a Windows utility that includes automatic I/O mapping to speed up commissioning.

Features

- Protocol conversion between Modbus and PROFIBUS
- Supports PROFIBUS DP-V0 slave
- Supports Modbus RTU/ASCII master and slave modes
- Windows utility with QuickLink function for automatic configuration and I/O mapping (AutoMapping)
- 2 kV serial isolation protection
- Status monitoring and fault protection for easier maintenance
- Embedded traffic monitoring and diagnostic information for troubleshooting
- Redundant dual DC power inputs and 1 relay output
- 40 to 75C wide operating temperature

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port, DB9 male
- 1 x PROFIBUS DP-V0 slave port, DB9 female, 9600 bps to 12 Mbps
- Serial baudrate: 50 bps to 921.6 kbps
- Modbus RTU/ASCII master and slave, up to 100 commands
- Modbus functions supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
- Input data size: 7744 bytes, output data size: 7744 bytes
- 2 kV isolation
- PROFIBUS rotary switch addresses 0-99 (100-125 via software configuration)
- Power input: 12 to 48 VDC, 275 mA @ 12 VDC
- Relay output: 1 A @ 24 VDC resistive load
- Operating temperature: -40 to 75C
- Metal housing, 36 x 105 x 140 mm, 500 g
- DIN rail or panel mounting

FAQs

Q: What does the MGate 4101I-MB-PBS-T do?
A: It converts between Modbus RTU/ASCII and PROFIBUS DP-V0, allowing Modbus master or slave devices to exchange data with a PROFIBUS master.

Q: What does the I in the model name mean?
A: The I indicates the model has 2 kV isolation protection on the serial port.

Q: What operating temperature range does it support?
A: The T model is rated for -40 to 75C, suitable for harsh industrial environments.

Q: What power supply does it need?
A: It runs from 12 to 48 VDC through a screw-fastened Euroblock terminal, with redundant dual DC power inputs.

Q: Which serial standards are supported?
A: The DB9 male serial port supports RS-232, RS-422 and RS-485, with baudrates from 50 bps to 921.6 kbps.

Q: How is the gateway configured?
A: A Windows utility with a QuickLink function handles automatic configuration and I/O mapping, and the PROFIBUS address can be set with the rotary switch.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
