Moxa MGate 4101-MB-PBS-T | MGate 4101 Modbus to PROFIBUS Slave Gateway, 12-48 VDC, -40 to 75°C

Authorised Moxa Partner

SKU:MGate 4101-MB-PBS-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

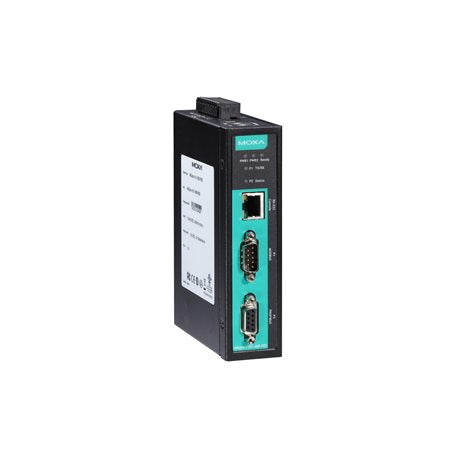

The MGate 4101-MB-PBS-T is an industrial Modbus to PROFIBUS slave gateway that connects Modbus RTU/ASCII master or slave devices to PROFIBUS DP-V0 PLCs such as Siemens S7-300/400. This -T model runs from a 12 to 48 VDC supply and is rated for -40 to 75°C operation, making it suited to harsh factory, energy and process environments. It is the non-isolated serial variant, with no serial isolation on the RS-232/422/485 port.

The gateway provides one DB9 male serial port and one DB9 female PROFIBUS DP-V0 slave port with built-in 2 kV isolation, supporting PROFIBUS baud rates from 9600 bps to 12 Mbps. A rotary switch handles PROFIBUS addressing, and a metal IP30 housing, relay output and Euroblock power terminal make it practical for control cabinet and DIN-rail style deployments. Hazardous-location approvals include ATEX, Class I Division 2 and IECEx.

Features

- Converts between Modbus RTU/ASCII (master or slave) and PROFIBUS DP-V0 slave
- Redundant dual DC power inputs and 1 relay output
- Wide -40 to 75°C operating temperature range
- PROFIBUS port with built-in 2 kV isolation
- Rotary switch for simple PROFIBUS addressing
- Metal IP30 housing for industrial installations
- ATEX, Class I Division 2 and IECEx hazardous-location approvals

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x RS-232/422/485 serial port, DB9 male
- 1 x PROFIBUS DP-V0 slave port, DB9 female, 9600 bps to 12 Mbps
- Modbus RTU/ASCII master or slave
- Modbus functions supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
- Modbus max. commands: 100
- Modbus input and output data size: 7744 bytes each
- Serial baud rate: 50 bps to 921.6 kbps
- PROFIBUS isolation: 2 kV built-in
- PROFIBUS addressing: rotary switch 0-99 (100-125 via software configuration)
- PROFIBUS max. I/O modules: 24 per page, 32 pages
- Console port: RS-232, 8-pin RJ45, 115200 bps
- Input voltage: 12 to 48 VDC, 275 mA @ 12 VDC
- Power connector: screw-fastened Euroblock terminal
- Relay output: 1 A @ 24 VDC resistive load
- Housing: metal, IP30
- Dimensions: 36 x 105 x 140 mm
- Weight: 500 g
- Operating temperature: -40 to 75°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% non-condensing
- Hazardous locations: ATEX, Class I Division 2, IECEx
- MTBF: 1,537,948 hrs (Telcordia SR332)

FAQs

Q: What does the MGate 4101-MB-PBS-T do?
A: It converts between Modbus RTU/ASCII devices (acting as master or slave) and a PROFIBUS DP-V0 network, where the gateway operates as a PROFIBUS slave to a PLC such as a Siemens S7-300/400.

Q: What is the difference between the -T model and the standard MGate 4101-MB-PBS?
A: The -T model is rated for -40 to 75°C operation and is powered from 12 to 48 VDC. This variant has no serial isolation on the serial port, whereas the I models add 2 kV serial isolation.

Q: Does this gateway include isolation on the PROFIBUS port?
A: Yes. The PROFIBUS port has built-in 2 kV isolation. The serial port on this model is not isolated.

Q: What serial interfaces does it support?
A: One DB9 male serial port supporting RS-232, RS-422 and RS-485, with baud rates from 50 bps to 921.6 kbps and automatic data direction control for RS-485.

Q: What PROFIBUS speeds are supported?
A: The PROFIBUS DP-V0 slave port supports baud rates from 9600 bps up to 12 Mbps.

Q: How is the PROFIBUS address set?
A: A rotary switch sets addresses 0 to 99, and addresses 100 to 125 can be configured through software.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
