Moxa MGate 4101-MB-PBS | MGate 4101 Modbus to PROFIBUS Gateway, 12-48 VDC, 0-60°C

Authorised Moxa Partner

SKU:MGate 4101-MB-PBS

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

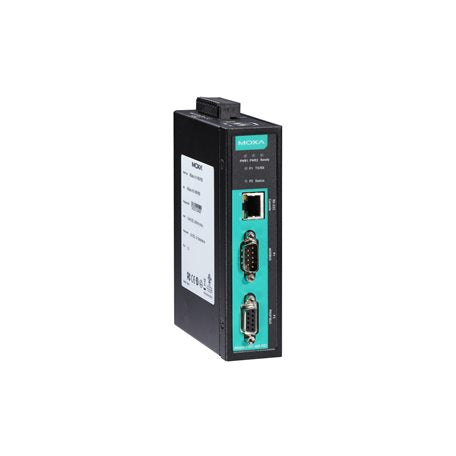

The Moxa MGate 4101-MB-PBS is an industrial Modbus RTU/ASCII to PROFIBUS DP-V0 slave protocol gateway that connects Modbus master or slave devices to PROFIBUS PLC networks such as Siemens S7-300/400. This standard temperature model features a non-isolated serial port, 12 to 48 VDC redundant dual power inputs and an operating range of 0 to 60°C.

It offers one RS-232/422/485 serial port (DB9 male) and one PROFIBUS port (DB9 female) with 2 kV built-in isolation, running from 9600 bps up to 12 Mbps. A rugged IP30 metal housing with DIN-rail mounting, a relay output and the MGate Manager utility with QuickLink automatic configuration make it well suited to control cabinets and factory automation retrofits.

Features

- Converts between Modbus RTU/ASCII and PROFIBUS DP-V0 slave networks
- Supports both Modbus RTU/ASCII master and slave modes
- Connects Modbus devices to Siemens S7-300/400 and other PROFIBUS PLCs
- MGate Manager Windows utility with QuickLink for configuration within minutes
- Status monitoring and fault protection for easier maintenance
- Embedded traffic monitoring and diagnostics for faster troubleshooting
- Redundant dual DC power inputs and 1 relay output
- Rugged metal housing with DIN-rail mounting

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Protocol conversion: Modbus RTU/ASCII (master or slave) to PROFIBUS DP-V0 slave
- Serial port: 1 x RS-232/422/485, DB9 male, 50 bps to 921.6 kbps
- Serial isolation: non-isolated (isolation applies to I models only)
- PROFIBUS port: 1 x DB9 female, 9600 bps to 12 Mbps, 2 kV built-in isolation
- PROFIBUS address: rotary switch 0-99, 100-125 via software
- PROFIBUS input/output data size: 7744 bytes each
- Modbus input/output data size: 7744 bytes each, up to 100 commands
- Modbus functions supported: 1, 2, 3, 4, 5, 6, 15, 16, 23
- Power input: 12 to 48 VDC redundant dual inputs, 275 mA @ 12 VDC
- Relay output: 1 A @ 24 VDC resistive load
- Operating temperature: 0 to 60°C
- Housing: metal, IP30, DIN-rail mountable
- Dimensions: 36 x 105 x 140 mm, weight 500 g
- MTBF: 1,537,948 hrs (Telcordia SR332)

FAQs

Q: What does the MGate 4101-MB-PBS do?
A: It converts between Modbus RTU/ASCII and PROFIBUS DP-V0, allowing Modbus master or slave devices to communicate with a PROFIBUS master such as a Siemens S7-300/400 PLC.

Q: Does this model have isolated serial?
A: No. This is the non-isolated serial model. Serial isolation is only available on the I models. The PROFIBUS port has 2 kV built-in isolation.

Q: What serial interfaces are supported?
A: One DB9 male serial port supporting RS-232, RS-422 and RS-485, with baud rates from 50 bps to 921.6 kbps and automatic data direction control for RS-485.

Q: What power supply does it require?
A: 12 to 48 VDC via a screw-fastened Euroblock terminal, with redundant dual power inputs for added reliability.

Q: What is the operating temperature range?
A: This standard temperature model operates from 0 to 60°C.

Q: How is the gateway configured?
A: It is configured with the MGate Manager Windows utility, and the QuickLink function can set up the gateway automatically within minutes.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
