Moxa MC-3201-TGL3-S-S | MC-3201 Fanless Industrial Computer, Core i3, 8GB, 4x GbE

Authorised Moxa Partner

SKU:MC-3201-TGL3-S-S

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

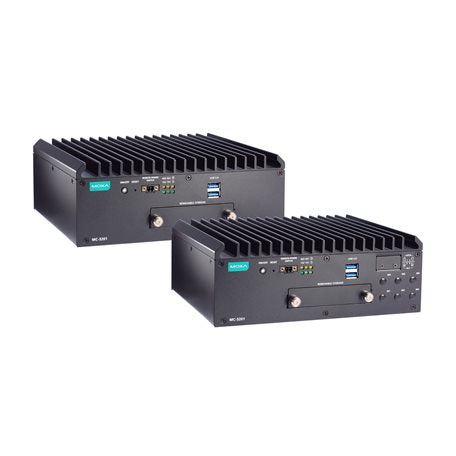

The MC-3201-TGL3-S-S is a compact, fanless x86 industrial computer from the Moxa MC-3201 Series, built around an 11th Gen Intel Core i3-1115G4E processor (Tiger Lake U) with 8 GB DDR4 pre-installed. This S-S variant accepts a wide 9 to 36 VDC power input and has no DI/DO, making it well suited to IIoT, edge AI and marine applications over a -20 to 55°C operating range.

Connectivity includes 4 x 10/100/1000 Mbps Ethernet ports, 2 x software-selectable RS-232/422/485 serial ports, 2 x USB 3.0 and 4 x USB 2.0 ports, and 2 x DisplayPort outputs supporting up to 3840 x 2160 at 60 Hz. M.2 B key and E key sockets allow expansion for 5G, GPS, SATA SSD, Wi-Fi and Bluetooth modules, while built-in TPM 2.0 supports secure deployments. The metal housing includes a wall-mounting kit.

Features

- 11th Gen Intel Core i3 (Tiger Lake U) processor for edge computing and IIoT workloads
- Fanless metal housing for reliable, silent operation
- Two DDR4 SODIMM slots expandable to 32 GB
- M.2 B key socket for 5G, GPS and M.2 SATA SSD modules
- M.2 E key socket for Wi-Fi and Bluetooth modules
- Four Gigabit Ethernet and two software-selectable serial ports
- Built-in TPM 2.0 module
- Wide 9 to 36 VDC power input
- Complies with IEC 60945 and IACS E10 maritime standards
- Wall-mounting kit included

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Core i3-1115G4E (6M Cache, up to 2.2 GHz)
- Graphics: Intel Iris Xe Graphics
- Memory: 8 GB DDR4 pre-installed, 2 x SODIMM DDR4 2133 slots, up to 32 GB
- Storage: 1 x 2.5-inch HDD/SSD slot
- Ethernet: 4 x 10/100/1000 Mbps (RJ45), 1.5 kV magnetic isolation
- Serial: 2 x RS-232/422/485 (DB9 male), software selectable, 50 bps to 115.2 kbps
- USB: 2 x USB 3.0 and 4 x USB 2.0 (Type-A)
- Video: 2 x DisplayPort, up to 3840 x 2160 at 60 Hz
- Audio: 1 x line in, 1 x line out (3.5 mm)
- Security: TPM v2.0
- Power input: 9 to 36 VDC (S-S model), no DI/DO
- Operating temperature: -20 to 55°C (-4 to 131°F)
- Storage temperature: -30 to 60°C (-22 to 140°F)
- Humidity: 5 to 95% non-condensing
- Dimensions: 220 x 80 x 170 mm
- Weight: 3,000 g
- Housing: Metal, wall mounting
- Supported OS: Windows 10 IoT Enterprise LTSC 2021; Linux Debian 11 (kernel 5.10) driver support, 64-bit
- Certifications: IEC 60945, IACS E10, UL 62368-1, EN 62368-1, FCC Part 15B Class A, RoHS, CRoHS, WEEE
- MTBF: 323,270 hrs (Telcordia TR/SR)

FAQs

Q: What processor and memory does the MC-3201-TGL3-S-S have?
A: It uses an Intel Core i3-1115G4E processor with 8 GB DDR4 pre-installed. The two SODIMM slots support up to 32 GB in total.

Q: What power input does the S-S variant support?
A: The S-S variant accepts a wide 9 to 36 VDC input and has no DI/DO.

Q: Can I add wireless or cellular connectivity?
A: Yes. The M.2 B key socket supports 5G, GPS and M.2 SATA SSD modules, and the M.2 E key socket supports Wi-Fi and Bluetooth modules.

Q: Which operating systems are supported?
A: Windows 10 IoT Enterprise LTSC 2021 is supported, with driver support for Linux Debian 11 (kernel 5.10), 64-bit.

Q: Is it suitable for marine applications?
A: Yes. It complies with the IEC 60945 and IACS E10 maritime standards and operates from -20 to 55°C.

Q: What display and storage options are available?
A: Two DisplayPort outputs support up to 3840 x 2160 at 60 Hz, and a 2.5-inch HDD/SSD slot provides internal storage.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
