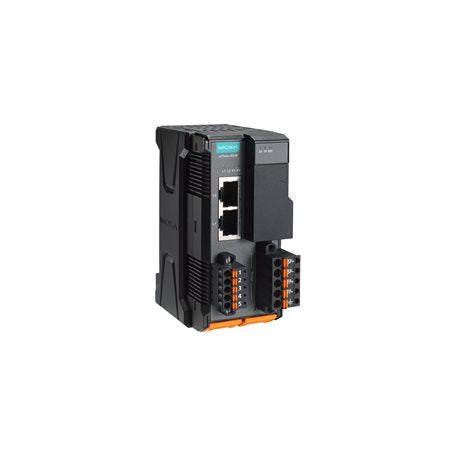

Moxa ioThinx 4510-T | ioThinx 4510 Modular Remote I/O Adapter, 2x RJ45, -40 to 75°C

Authorised Moxa Partner

SKU:ioThinx 4510-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioThinx 4510-T is a wide-temperature modular remote I/O adapter built for industrial data acquisition. It is the -40 to 75°C wide temperature model of the ioThinx 4510 Series, with two RJ45 Ethernet ports, a 3-in-1 RS-232/RS-422/RS-485 serial interface and a built-in Modbus RTU gateway. A single adapter can manage up to 32 I/O modules.

The adapter supports Modbus, SNMP, RESTful API and MQTT, and includes SNMPv3 with SHA-2 encryption for secure monitoring. Tool-free installation and removal and web-based configuration simplify deployment and reconfiguration, while Class I Division 2 and ATEX Zone 2 certifications suit hazardous location installations.

Features

- Wide -40 to 75°C operating temperature range
- Built-in Modbus RTU gateway function (Modbus RTU Master for retrieving data from serial meters)
- Supports up to 32 I/O modules per adapter
- Supports Modbus, SNMP, RESTful API and MQTT
- SNMPv3, SNMPv3 Trap and SNMPv3 Inform with SHA-2 encryption
- Easy tool-free installation and removal
- Easy web configuration and reconfiguration
- Class I Division 2 and ATEX Zone 2 certifications

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Ethernet interface: 2 x RJ45
- Serial interface: RS-232/RS-422/RS-485 (3-in-1)
- Supports up to 32 I/O modules
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Ambient relative humidity: 5 to 95% (non-condensing)
- Input voltage: 12/24 VDC
- Over-current protection: 2.5 A @ 25°C
- Over-voltage protection: 33 VDC
- Output current: 2 A (max.)
- Weight: 173.5 g (0.382 lb)
- MTBF (Telcordia SR332): 1,451,040 hrs
- Certifications: Class I Division 2 and ATEX Zone 2
- Green product: RoHS, CRoHS, WEEE

FAQs

Q: What operating temperature does the ioThinx 4510-T support?
A: The ioThinx 4510-T is the wide-temperature model and operates from -40 to 75°C (-40 to 167°F).

Q: How many I/O modules can this adapter manage?
A: It supports up to 32 I/O modules.

Q: Does it include a Modbus gateway?
A: Yes. It has a built-in Modbus RTU gateway function and can act as a Modbus RTU Master to retrieve data from serial meters.

Q: Which communication protocols are supported?
A: The adapter supports Modbus, SNMP, RESTful API and MQTT, including SNMPv3, SNMPv3 Trap and SNMPv3 Inform with SHA-2 encryption.

Q: What serial and Ethernet interfaces does it provide?
A: It provides two RJ45 Ethernet ports and a 3-in-1 serial interface supporting RS-232, RS-422 and RS-485.

Q: Is it suitable for hazardous locations?
A: It carries Class I Division 2 and ATEX Zone 2 certifications, which suit hazardous location installations.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
