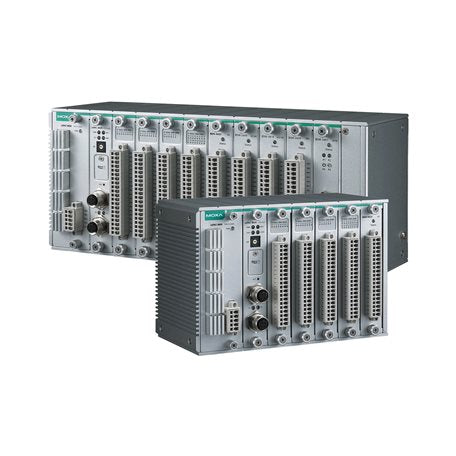

Moxa ioPAC 8600-CPU30-RJ45-C-T | ioPAC 8600 Rugged Controller, CPU30, 2-Port RJ45, C/C++, -40-75C

Authorised Moxa Partner

SKU:ioPAC 8600-CPU30-RJ45-C-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The ioPAC 8600-CPU30-RJ45-C-T is a modular rugged controller CPU module built around a 1 GHz Cortex-A8 processor with two 10/100 Mbps RJ45 Ethernet ports. It is programmed in C/C++ on real-time Linux and operates across a -40 to 75°C temperature range, making it suited to rail, wind power and offshore applications.

The module carries 512 MB SDRAM, onboard eMMC storage and a microSD slot for expansion. It supports Modbus TCP and Modbus RTU/ASCII in master and slave modes, along with SSHv2, SNMPv3 and AES-256 encryption for secure deployments. EN 50155 and EN 50121-4 railway certifications cover demanding rolling stock and trackside installations.

Features

- Rugged modular controller designed for rail, wind power and offshore environments
- Programmable in C/C++ on real-time Linux
- Ethernet bypass option or dual MAC addresses, selectable by jumper
- Supports Modbus TCP and Modbus RTU/ASCII in master and slave modes
- SSHv2, SNMPv3 and AES-256 encryption for secure communications
- EN 50155 and EN 50121-4 railway compliance
- Wide -40 to 75°C operating temperature range
- Real-time clock with capacitor backup

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 32-bit Cortex-A8 1 GHz CPU
- Real-time Linux (PREEMPTRT)
- 2 x 10/100BaseT(X) RJ45 Ethernet ports
- 1 MAC address (Ethernet bypass) or 2 MAC addresses, jumper selectable
- C/C++ control logic language
- 512 MB SDRAM
- 128 KB SPI-NVRAM
- eMMC 4 GB (HW Rev 1.0.1) or 8 GB (HW Rev 1.1.0)
- microSD slot up to 32 GB (SD 2.0 compatible)
- RS-232 console port, 3-pin
- 1.5 kV built-in magnetic isolation protection
- Power consumption 223 mA @ 24 VDC
- Metal housing, 148 g
- Operating temperature -40 to 75°C
- Storage temperature -40 to 85°C
- Ambient relative humidity 5 to 95% (non-condensing)
- EN 50121-4, EN 50155, UL 508, CISPR 32, FCC Part 15B Class A

FAQs

Q: What programming language does the ioPAC 8600-CPU30-RJ45-C-T use?
A: It is programmed in C/C++ and runs on a real-time Linux (PREEMPTRT) operating system.

Q: What is the operating temperature range?
A: The module operates from -40 to 75°C. A wide-temperature industrial-grade microSD card is required if you use the microSD slot at temperature extremes.

Q: Which industrial protocols are supported?
A: It supports Modbus TCP client and server, Modbus RTU/ASCII master and slave functions, Moxa AOPC (Active Tag) and SNMPv1/v2c/v3.

Q: Does it carry railway certifications?
A: Yes, it is certified to EN 50155 and EN 50121-4, which suits rolling stock and trackside installations.

Q: How do the two Ethernet ports work?
A: The two 10/100 Mbps RJ45 ports can operate with one shared MAC address in Ethernet bypass mode or with two MAC addresses, selected by jumper.

Q: What storage options does the module provide?
A: It includes onboard eMMC (4 GB on HW Rev 1.0.1, 8 GB on HW Rev 1.1.0), 512 MB SDRAM and a microSD slot supporting cards up to 32 GB.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
