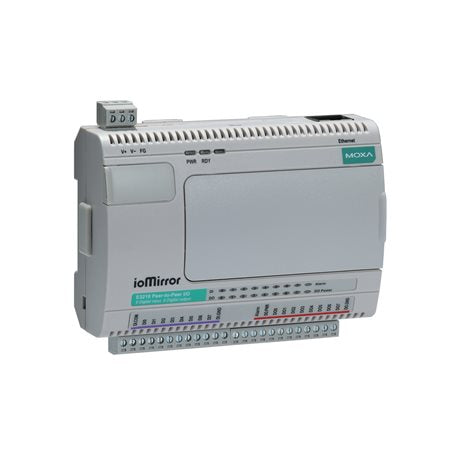

Moxa ioMirror E3210 | Peer-to-Peer I/O Module, 8 DI / 8 DO

Authorised Moxa Partner

SKU:ioMirror E3210

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioMirror E3210 is a universal peer-to-peer I/O module with 8 digital inputs and 8 digital outputs, designed to replace signal cabling between remote locations over Ethernet. This 8 DI / 8 DO standard temperature model (-10 to 60°C) maps input signals directly to the outputs of a paired ioMirror unit, with typical peer-to-peer latency within 20 ms and no PLC or controller required.

Up to 8 pairs of DI/DO signals can be exchanged with another ioMirror unit, and each input can be mapped to two IP addresses to copy sensor signals to up to 16 locations. The module also works with local PLC and DCS controllers, supports Modbus/TCP for remote monitoring, and provides an alarm contact channel for connectivity status.

Features

- Direct input-to-output signal communication over IP
- High-speed peer-to-peer I/O within 20 ms
- Physical alarm port for connectivity status
- Local alarm channel and remote alarm messages via ioEventLog
- Each input can be mapped to two IP addresses, copying sensor inputs to up to 16 locations
- Quick configuration using a utility or web interface
- Modbus/TCP support for remote monitoring
- Optional LCD module for easy configuration

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x digital inputs (NPN; source type)
- 8 x digital outputs (sink type)
- 1 x alarm contact channel
- 1 x RJ45 10/100 Mbps Ethernet port
- Supply voltage: 12-48 VDC
- Operating temperature: -10 to 60°C
- Peer-to-peer I/O latency: typically within 20 ms
- Protocol support: Modbus/TCP
- MTBF: 231,020 hrs (Telcordia SR332)
- Standards: UL 508, cULus, CE, FCC Part 15 Subpart B Class A

FAQs

Q: Does the ioMirror E3210 need a PLC to operate?
A: No. It maps digital input signals directly to the outputs of a paired ioMirror unit over Ethernet, acting as a cable replacement without a PLC or controller. It can also be used with local PLC or DCS controllers.

Q: How many I/O channels does the ioMirror E3210 provide?
A: It provides 8 digital inputs (NPN; source type) and 8 digital outputs (sink type), allowing up to 8 pairs of DI/DO signals to be exchanged with another ioMirror unit.

Q: What is the signal latency between paired units?
A: Peer-to-peer I/O latency is typically within 20 ms.

Q: What operating temperature and power supply does it support?
A: This model operates from -10 to 60°C and accepts a 12-48 VDC supply.

Q: Can one input be sent to more than one destination?
A: Yes. Each input can be mapped to two IP addresses, so sensor inputs can be copied to up to 16 locations.

Q: Can it be monitored remotely?
A: Yes. It supports Modbus/TCP for remote monitoring, and a local alarm channel and remote alarm messages are available via ioEventLog.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
