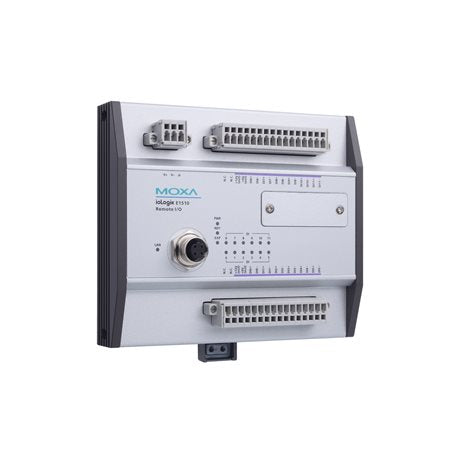

Moxa ioLogik E1512-M12-CT-T | ioLogik E1500 M12 Ethernet Remote I/O, 4 DI, 4 DIO, -40 to 85C

Authorised Moxa Partner

SKU:ioLogik E1512-M12-CT-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioLogik E1512-M12-CT-T is a rugged Ethernet remote I/O unit with 4 digital inputs and 4 software-configurable DIO channels, built for railway and other harsh industrial deployments. It carries a conformal coating, uses an aluminium housing and operates across a -40 to 85°C temperature range, connecting to the network through a single 10/100BaseT(X) M12 D-coded port.

The unit supports Modbus TCP Server (Slave), Moxa AOPC and the MXIO library, and is configured through a web console or the ioSearch Windows utility. It accepts 12 to 48 VDC input, mounts on a DIN rail (wall mounting with an optional kit) and is certified to EN 50121-4 and a portion of EN 50155 for rolling stock use.

Features

- Durable aluminium housing suited to rolling stock and industrial installations
- Compliant with EN 50121-4 and a portion of EN 50155 for railway applications
- Conformal coating protects the circuitry in harsh environments
- Wide -40 to 85°C operating temperature range
- Modbus TCP server, Moxa AOPC and MXIO library support for flexible integration
- Configurable via web console or ioSearch utility
- M12 D-coded Ethernet connector for vibration-resistant network connections

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 4 x digital input (DI) channels and 4 x software-configurable DIO channels
- 1 x 10/100BaseT(X) M12 D-coded 4-pin female Ethernet port
- Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library
- DI: dry contact or wet contact (NPN or PNP), 250 Hz counter frequency
- DO: sink type, 200 mA per channel, 500 Hz pulse output
- Isolation: 3k VDC or 2k Vrms
- Input voltage: 12 to 48 VDC, 150 mA @ 24 VDC
- Aluminium housing, 144 x 124 x 30 mm, 825 g
- Operating temperature: -40 to 85°C
- Conformal coating
- EN 50121-4 and EN 50155 (portion), UL 508
- DIN-rail mounting, wall mounting with optional kit

FAQs

Q: How many I/O channels does the ioLogik E1512-M12-CT-T provide?
A: It provides 4 digital input channels and 4 DIO channels that are configurable by software.

Q: What Ethernet connector does this model use?
A: It has one 10/100BaseT(X) port with an M12 D-coded 4-pin female connector.

Q: Which industrial protocols are supported?
A: It supports Modbus TCP Server (Slave), Moxa AOPC (Active Tag) and the MXIO library.

Q: What is the operating temperature range?
A: This unit operates from -40 to 85°C and also carries a conformal coating for harsh environments.

Q: What power supply does it require?
A: It accepts 12 to 48 VDC input, with typical power consumption of 150 mA at 24 VDC.

Q: How is the unit configured and mounted?
A: It is configured through the web console or the ioSearch Windows utility, and mounts on a DIN rail or on a wall with the optional kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
