Moxa ioLogik E1510-M12-T | Railway Ethernet Remote I/O, 12 DI

Authorised Moxa Partner

SKU:ioLogik E1510-M12-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

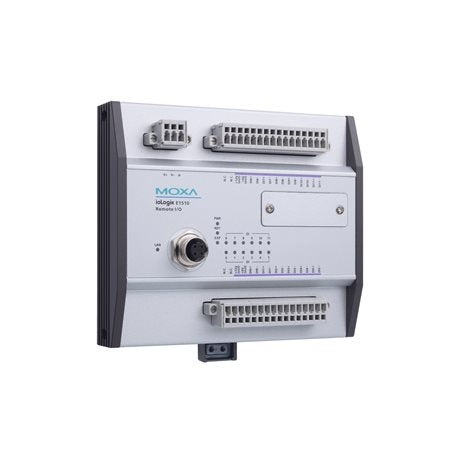

The Moxa ioLogik E1510-M12-T is a railway-grade Ethernet remote I/O unit with 12 digital input channels and an M12 D-coded Ethernet port, built for rolling stock and other harsh environments. It operates across -40 to 85°C and is certified to EN 50155 and EN 50121-4, making it well suited to onboard train systems and demanding industrial deployments. This 12 x DI model is supplied without conformal coating.

Each digital input supports dry contact or wet contact (NPN or PNP) sensors and can run as a standard DI or an event counter. The unit integrates with SCADA and control systems over Modbus TCP Server (Slave), Moxa AOPC (Active Tag) and the MXIO library, and is configured through a web console or the ioSearch Windows utility. A compact aluminium housing supports DIN-rail mounting, with wall mounting available using an optional kit.

Features

- Railway-grade I/O compliant with EN 50155 and EN 50121-4
- Wide operating temperature range of -40 to 85°C
- 12 digital inputs supporting dry and wet contacts or event counting
- M12 D-coded Ethernet connector for vibration-resistant connections
- Modbus TCP Server (Slave) with Moxa AOPC and MXIO library support
- Configuration via web console or ioSearch Windows utility
- Compact aluminium housing with DIN-rail or wall mounting
- Wide 12 to 48 VDC power input

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 12 x digital input channels
- Digital inputs support dry contact and wet contact (NPN or PNP), DI or event counter mode
- Counter frequency: 250 Hz
- Isolation: 3k VDC or 2k Vrms
- 1 x 10/100BaseT(X) M12 D-coded 4-pin female Ethernet port
- Magnetic isolation protection: 1.5 kV (built-in)
- Industrial protocols: Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO library
- Modbus TCP functions supported: 1, 2, 3, 4, 5, 6, 15, 16
- Configuration: Web Console (HTTP), ioSearch Windows utility
- Power input: 12 to 48 VDC, 150 mA @ 24 VDC
- Spring-type Euroblock terminals for I/O and power
- Operating temperature: -40 to 85°C
- Railway certifications: EN 50155, EN 50121-4
- Safety: UL 508
- Aluminium housing, 144 x 124 x 30 mm, 825 g
- DIN-rail mounting, wall mounting with optional kit
- MTBF: 507,064 hrs (Telcordia SR332)

FAQs

Q: How many digital inputs does the ioLogik E1510-M12-T have?
A: It provides 12 digital input channels, each of which can operate as a standard DI or as an event counter with a counter frequency of 250 Hz.

Q: What sensor types can be connected to the digital inputs?
A: The inputs accept dry contact sensors and wet contact sensors (NPN or PNP). For wet contacts, on is 10 to 30 VDC and off is 0 to 3 VDC.

Q: Is this unit suitable for railway applications?
A: Yes. It is certified to EN 50155 and EN 50121-4 and uses an M12 D-coded Ethernet connector, making it suitable for rolling stock and other railway environments.

Q: What operating temperature range does it support?
A: The ioLogik E1510-M12-T operates from -40 to 85°C with 5 to 95% non-condensing relative humidity.

Q: Which industrial protocols does it support?
A: It operates as a Modbus TCP Server (Slave) and also supports Moxa AOPC (Active Tag) and the MXIO library for integration with SCADA and control software.

Q: How is the unit powered and mounted?
A: It runs from a 12 to 48 VDC supply via a spring-type Euroblock terminal and mounts on a DIN rail, or on a wall using an optional mounting kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
