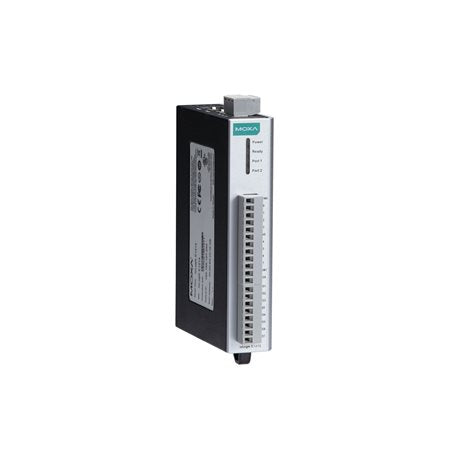

Moxa ioLogik-E1240 | ioLogik E1240 Remote Ethernet I/O, 8 x AI, 2-Port Switch

Authorised Moxa Partner

SKU:ioLogik E1240

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioLogik E1240 is an industrial Ethernet remote I/O unit with 8 differential analog input channels (voltage or current, 16-bit) and a built-in 2-port Ethernet switch for daisy-chain topologies. This standard model operates from -10 to 60 C, making it suited to factory automation, process monitoring and building control cabinets where analog sensors need to be brought onto an Ethernet network.

It supports Modbus TCP, EtherNet/IP adapter mode, SNMP, a RESTful API and Moxa AOPC tags, so it integrates with PLCs, SCADA systems and IIoT platforms. Mount it on a DIN rail or a wall, configure it through a web console or the ioSearch utility, and use peer-to-peer communications to reduce wiring costs.

Features

- 8 differential analog inputs for voltage and current sensors
- Built-in 2-port Ethernet switch for daisy-chain topologies
- User-definable Modbus TCP slave addressing
- EtherNet/IP adapter mode for PLC integration
- RESTful API support for IIoT applications
- Peer-to-peer communications to save wiring costs
- Active communication with MX-AOPC UA Server
- SNMP v1/v2c network management
- Mass deployment and configuration with the ioSearch utility
- Web browser configuration
- MXIO library for Windows and Linux
- Class I Division 2 and ATEX Zone 2 certification

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x analog input channels, differential, voltage/current
- 16-bit resolution
- Input ranges: 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA, 4 to 20 mA with burn-out detection
- Accuracy: +/-0.1% FSR @ 25 C; +/-0.3% FSR @ -10 to 60 C
- Sampling rate: 12 samples/sec all channels, 1.5 samples/sec per channel
- Built-in 120 ohm resistor for current input
- Isolation: 3k VDC or 2k Vrms
- 2 x 10/100BaseT(X) RJ45 Ethernet ports with 1 MAC address (Ethernet bypass)
- Protocols: Modbus TCP Server, EtherNet/IP Adapter, Moxa AOPC, MXIO library
- Management: SNMPv1/v2c, RESTful API, DHCP, BOOTP, HTTP, access control list
- Modbus TCP: up to 10 server connections
- Power input: 12 to 36 VDC, 121 mA @ 24 VDC
- Operating temperature: -10 to 60 C, storage -40 to 85 C
- Dimensions: 27.8 x 124 x 84 mm, weight 200 g
- DIN-rail or wall mounting, plastic housing
- Certifications: UL 508, ATEX, Class I Division 2

FAQs

Q: How many analog inputs does the ioLogik E1240 have, and what signals does it accept?
A: It provides 8 differential analog input channels with 16-bit resolution. Each channel supports 0 to 10 VDC, 0 to 20 mA, 4 to 20 mA, or 4 to 20 mA with burn-out detection.

Q: What is the operating temperature range of this model?
A: This standard model operates from -10 to 60 C.

Q: Can the E1240 be daisy-chained?
A: Yes. The two built-in 10/100BaseT(X) RJ45 ports act as an Ethernet switch, so units can be connected in a daisy-chain topology to reduce switch ports and cabling.

Q: Which industrial protocols are supported?
A: It supports Modbus TCP Server (slave), EtherNet/IP Adapter (slave), Moxa AOPC active tags, SNMP v1/v2c and a RESTful API, plus the MXIO library for Windows and Linux.

Q: What power supply does the ioLogik E1240 require?
A: It runs from a 12 to 36 VDC input via a screw-fastened Euroblock terminal, drawing 121 mA at 24 VDC.

Q: How is the unit mounted and configured?
A: It can be DIN-rail or wall mounted. Configuration is done through a web console or the Windows ioSearch utility.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
