Moxa ioLogik E1213-T | Remote I/O, 8 DI, 4 DO Source, 4 DIO, -40 to 75°C

Authorised Moxa Partner

SKU:ioLogik E1213-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

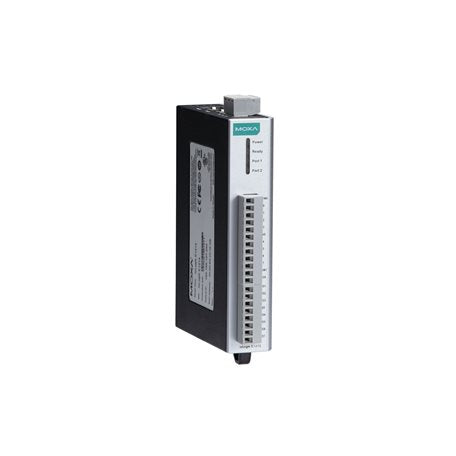

The Moxa ioLogik E1213-T is an Ethernet remote I/O module with 8 digital inputs, 4 source-type digital outputs and 4 jumper-configurable DIO channels, built for extended-temperature operation from -40 to 75°C. It suits factory automation, process monitoring and control cabinet deployments where field signals need to be brought onto an IP network over Modbus TCP or EtherNet/IP.

Two switched 10/100BaseT(X) RJ45 ports allow daisy-chain topologies without an external switch, while a RESTful API and SNMP support integration with both IT and OT systems. Each digital output is rated at 500 mA with overcurrent and over-temperature protection, and the unit mounts on DIN-rail or a wall and runs from a 12 to 36 VDC supply. Configuration is handled through the web console, the ioSearch utility or the MCC Tool.

Features

- Two-port Ethernet switch for daisy-chain topologies
- Supports Modbus TCP Server and EtherNet/IP Adapter protocols
- RESTful API and SNMP for IT/OT integration
- Jumper-configurable DIO channels (DI or DO)
- Source-type DO rated 500 mA per channel with overcurrent and over-temperature protection
- Wide operating temperature range of -40 to 75°C
- Web console, ioSearch utility and MCC Tool configuration

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 8 x Digital Inputs, dry contact or wet contact (NPN or PNP)
- 4 x Digital Outputs, source type, 500 mA per channel
- 4 x Configurable DIO channels (set by jumper)
- 2 x 10/100BaseT(X) RJ45 ports, switched, 1 MAC address
- DI counter frequency 250 Hz, DO pulse output frequency 500 Hz (max.)
- Isolation: 3k VDC or 2k Vrms
- Input voltage: 12 to 36 VDC, 150 mA @ 24 VDC
- Protocols: Modbus TCP Server, EtherNet/IP Adapter, RESTful API, SNMPv1/v2c
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Dimensions: 27.8 x 124 x 84 mm, weight 200 g
- Installation: DIN-rail or wall mounting
- Safety: UL 508
- MTBF: 3,609,811 hrs (Telcordia SR-332)

FAQs

Q: How many I/O channels does the ioLogik E1213-T provide?
A: It provides 8 digital inputs, 4 source-type digital outputs and 4 DIO channels that can be set as inputs or outputs by jumper.

Q: What industrial protocols does the ioLogik E1213-T support?
A: It supports Modbus TCP Server (slave) and EtherNet/IP Adapter, plus a RESTful API and SNMPv1/v2c for IT/OT integration.

Q: What does the -T suffix mean?
A: The -T variant is rated for a wide operating temperature range of -40 to 75°C, suitable for harsh industrial environments.

Q: Can I daisy-chain multiple units?
A: Yes. The two switched 10/100BaseT(X) RJ45 ports allow units to be daisy-chained without an additional switch.

Q: What power supply does it require?
A: It requires a 12 to 36 VDC supply, drawing 150 mA at 24 VDC, connected via a screw-fastened Euroblock terminal.

Q: What is the current rating of the digital outputs?
A: Each source-type digital output is rated at 500 mA per channel, with overcurrent protection at 1.5 A per channel at 25°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
