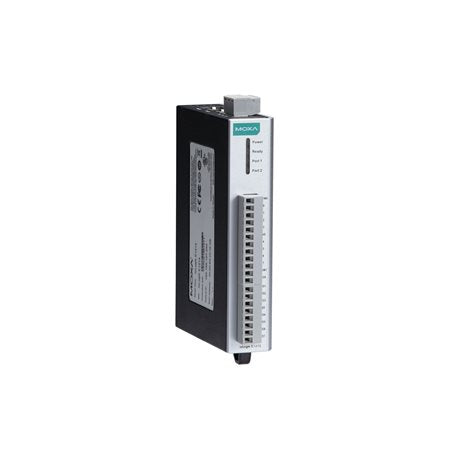

Moxa ioLogik E1211-T | ioLogik E1200 16-DO Ethernet Remote I/O Module, -40 to 75°C

Authorised Moxa Partner

SKU:ioLogik E1211-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ioLogik E1211-T is an Ethernet remote I/O module with 16 sink-type digital output channels and a built-in 2-port Ethernet switch for daisy-chain topologies. This wide-temperature variant operates from -40 to 75°C, making it suited to unheated cabinets, outdoor enclosures and harsh industrial environments. Each output is rated at 200 mA and can be configured as a standard DO or a pulse output at up to 500 Hz.

The ioLogik E1200 series speaks both operational technology and IT languages, supporting Modbus TCP Server, EtherNet/IP Adapter, Moxa AOPC and the MXIO library alongside SNMPv1/v2c and a RESTful API. Configuration is via web console, the ioSearch utility or the MCC Tool, and the module mounts on DIN rail or a wall with a compact plastic housing and 12 to 36 VDC power input.

Features

- 16 sink-type digital output channels with pulse output mode
- Built-in 2-port Ethernet switch for daisy-chain topologies, reducing cabling and switch port requirements
- Supports OT protocols (Modbus TCP, EtherNet/IP, Moxa AOPC) and IT protocols (SNMP, RESTful API, MXIO library)
- Wide operating temperature range of -40 to 75°C
- Configurable via web console, ioSearch utility or MCC Tool
- ATEX and Class I Division 2 hazardous location certification
- Compact DIN-rail or wall mounting design

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x digital output channels, sink type, 200 mA per channel
- DO or pulse output mode, 500 Hz maximum pulse frequency
- Over-current protection: 2.6 A per channel at 25°C
- Over-voltage protection: 35 VDC
- Isolation: 3k VDC or 2k Vrms
- 2 x 10/100BaseT(X) RJ45 ports, Ethernet bypass
- Magnetic isolation protection: 1.5 kV built-in
- Protocols: Modbus TCP Server, EtherNet/IP Adapter, Moxa AOPC, MXIO Library, SNMPv1/v2c, RESTful API
- Modbus TCP: up to 10 client connections
- Power input: 12 to 36 VDC, 200 mA at 24 VDC
- Connectors: screw-fastened Euroblock terminals for I/O and power
- Operating temperature: -40 to 75°C (-40 to 167°F)
- Storage temperature: -40 to 85°C (-40 to 185°F)
- Humidity: 5 to 95% non-condensing
- Dimensions: 27.8 x 124 x 84 mm, weight 200 g
- Mounting: DIN rail or wall
- Approvals: UL 508, ATEX, Class I Division 2, RoHS, CRoHS, WEEE
- MTBF: 923,027 hours (Telcordia SR-332)

FAQs

Q: What type of digital outputs does the ioLogik E1211-T provide?
A: It provides 16 sink-type digital output channels, each rated at 200 mA, and each channel can operate as a standard DO or a pulse output up to 500 Hz.

Q: What is the difference between the E1211-T and the standard E1211?
A: The E1211-T is the wide-temperature variant, rated for operation from -40 to 75°C, so it suits cold storage, outdoor cabinets and other extreme environments.

Q: Which industrial protocols does it support?
A: It supports Modbus TCP Server, EtherNet/IP Adapter, Moxa AOPC and the MXIO library, plus SNMPv1/v2c and a RESTful API for IT integration.

Q: Can I daisy-chain multiple modules?
A: Yes. The two built-in 10/100BaseT(X) RJ45 ports act as an Ethernet switch, allowing units to be daisy-chained to reduce cabling and switch port usage.

Q: What power supply does it need?
A: It runs from a 12 to 36 VDC input via a screw-fastened Euroblock terminal, drawing 200 mA at 24 VDC.

Q: How is it mounted and configured?
A: It mounts on DIN rail or a wall. Configuration is via the web console, the ioSearch Windows utility or the MCC Tool.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
