Moxa ICF-1280I-S-ST | ICF-1280I PROFIBUS-to-Fiber Converter, Single-Mode, 2x ST

Authorised Moxa Partner

SKU:ICF-1280I-S-ST

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

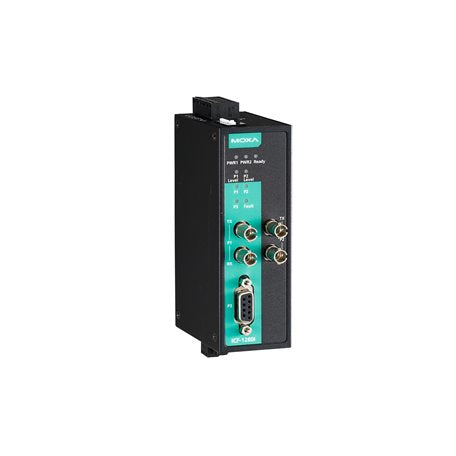

The ICF-1280I-S-ST is an industrial PROFIBUS-to-fibre converter with two single-mode ST fibre ports and a DB9 female PROFIBUS DP port. It extends PROFIBUS transmission up to 45 km over single-mode fibre at 1310 nm, with auto baudrate detection from 9600 bps up to 12 Mbps. Built-in 2 kV galvanic isolation protects connected equipment, and the unit operates across a 0 to 60°C temperature range.

A redundant fibre ring provides zero recovery time, while Remote Fibre Diagnosis lets you examine network-wide fibre communication from a single converter. PROFIBUS fail-safe prevents corrupted datagrams in functioning segments, a relay output provides alarm signalling, and dual 12 to 48 VDC power inputs support redundant power feeds.

Features

- Redundant fibre ring with zero recovery time
- Remote Fibre Diagnosis examines network-wide fibre communication from a single converter
- Auto baudrate detection with data speeds up to 12 Mbps
- PROFIBUS fail-safe prevents corrupted datagrams in functioning segments
- Alarm by relay output
- 2 kV galvanic isolation protection
- Dual power inputs for redundancy
- Extends transmission up to 45 km over single-mode fibre

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 x 100BaseFX single-mode ST fibre ports
- 1 x DB9 female PROFIBUS DP port
- Baudrate: 9600 bps to 12 Mbps with auto detection
- Wavelength: 1310 nm
- Tx output: -7 dBm, Rx sensitivity: -29 dBm, link budget: 21 dBm
- Typical distance: 45 km
- Isolation: 2 kV built-in
- Power inputs: 2 x 12 to 48 VDC via terminal block
- Input current: 370 mA @ 12 to 48 VDC
- Overload current protection supported
- Operating temperature: 0 to 60°C (32 to 140°F)
- Ambient relative humidity: 5 to 95% (non-condensing)

FAQs

Q: What fibre type and connector does the ICF-1280I-S-ST use?
A: It has two 100BaseFX single-mode fibre ports with ST connectors, operating at a wavelength of 1310 nm.

Q: How far can the ICF-1280I-S-ST extend a PROFIBUS network?
A: The typical transmission distance over single-mode fibre is 45 km, with a link budget of 21 dBm.

Q: What baudrates does it support?
A: It supports PROFIBUS baudrates from 9600 bps up to 12 Mbps, with auto baudrate detection.

Q: Does it support redundant fibre ring topologies?
A: Yes. It supports a redundant fibre ring with zero recovery time, and dual power inputs for redundant power feeds.

Q: What power supply does it require?
A: It accepts 12 to 48 VDC on two terminal block inputs, drawing 370 mA at 12 to 48 VDC.

Q: What is the operating temperature range of this model?
A: The ICF-1280I-S-ST operates from 0 to 60°C (32 to 140°F) at 5 to 95% non-condensing relative humidity.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
