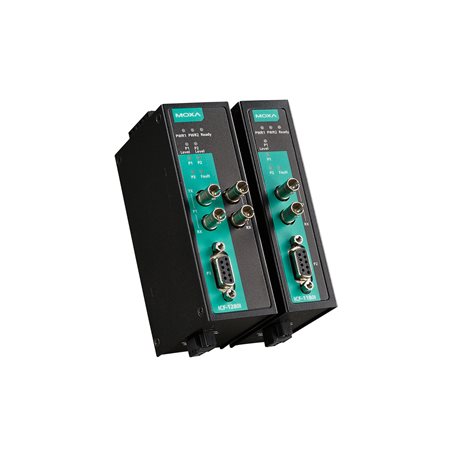

Moxa ICF-1180I-S-ST | ICF-1180I PROFIBUS-to-Fiber Converter, Single-Mode, ST, 0-60°C

Authorised Moxa Partner

SKU:ICF-1180I-S-ST

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The ICF-1180I-S-ST is an industrial PROFIBUS-to-fiber converter that carries PROFIBUS DP signals from a copper DB9 port over single-mode fibre with an ST connector. It extends PROFIBUS transmission distance up to 45 km, auto-detects baudrate from 9600 bps up to 12 Mbps, and operates across a 0 to 60°C temperature range.

Built-in 2 kV galvanic isolation, dual 12 to 48 VDC power inputs with reverse power protection, and a relay output for warnings and alerts make it well suited to fieldbus runs through electrically noisy plant environments. The IP30 metal housing mounts on a DIN rail (with the optional kit) or on a wall, and fibre test and signal intensity diagnosis functions help validate and monitor the optical link.

Features

- Extends PROFIBUS transmission distance up to 45 km over single-mode fibre
- Auto baudrate detection with data speeds up to 12 Mbps
- Fibre-cable test function validates fibre communication
- PROFIBUS fail-safe prevents corrupted datagrams in functioning segments
- Fibre inverse feature
- Relay output for warnings and alerts
- 2 kV galvanic isolation protection
- Dual power inputs for redundancy with reverse power protection
- Fibre signal intensity diagnosis support

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- PROFIBUS DP, 1 x DB9 female port
- Single-mode fibre, ST connector, 1310 nm
- Typical distance up to 45 km
- Fibre Tx output -7 dBm, Rx sensitivity -29 dBm, link budget 21 dBm
- Baudrate 9600 bps to 12 Mbps (auto-detect)
- 2 kV built-in isolation
- Input voltage 12 to 48 VDC, 269 mA, 2 power inputs
- Overload current protection supported
- Terminal block power connector
- Metal housing, IP30
- Dimensions 30.3 x 115 x 70 mm, weight 180 g
- DIN-rail mounting (optional kit) or wall mounting
- Operating temperature 0 to 60°C, humidity 5 to 95% non-condensing
- Approvals: ATEX, Class I Division 2, IECEx, DNV, UL 508
- MTBF 1,722,769 hrs

FAQs

Q: What fibre type and connector does the ICF-1180I-S-ST use?
A: It uses single-mode fibre with an ST connector at 1310 nm, with a typical distance of up to 45 km.

Q: What PROFIBUS baudrates does it support?
A: It auto-detects baudrate from 9600 bps up to 12 Mbps, so no manual speed configuration is required.

Q: What is the operating temperature range of this model?
A: This model operates from 0 to 60°C (32 to 140°F), with 5 to 95% non-condensing humidity.

Q: How is the ICF-1180I-S-ST powered?
A: It accepts 12 to 48 VDC through a terminal block and has two power inputs for redundancy, with reverse power protection.

Q: How do I mount it?
A: It can be wall mounted or mounted on a DIN rail using the optional DIN-rail kit. The metal housing is rated IP30.

Q: How does it protect against electrical noise?
A: It has built-in 2 kV galvanic isolation, and the PROFIBUS fail-safe function prevents corrupted datagrams from affecting functioning segments.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
