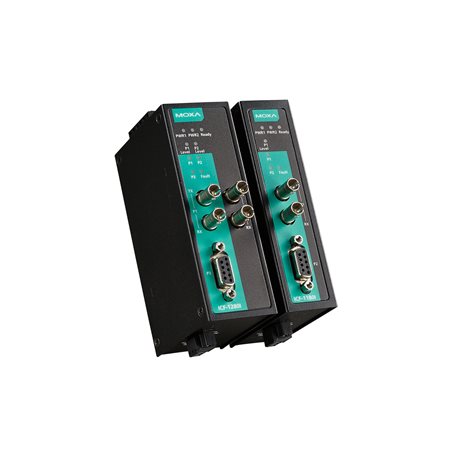

Moxa ICF-1180I-M-ST | ICF-1180I PROFIBUS-to-Fiber Converter, Multi-Mode ST, 4km

Authorised Moxa Partner

SKU:ICF-1180I-M-ST

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ICF-1180I-M-ST is an industrial PROFIBUS-to-fiber converter that carries PROFIBUS DP signals from a DB9 copper port over multi-mode fibre with an ST connector, extending transmission distance up to 4 km. It auto-detects baud rates from 9600 bps to 12 Mbps, includes 2 kV built-in isolation, and suits factory automation and process control networks that need longer runs or better noise immunity.

This multi-mode ST model operates across a standard 0 to 60°C range and is housed in a rugged metal IP30 enclosure. Dual 12 to 48 VDC power inputs support redundant power, while fibre link monitoring, signal intensity diagnosis and a relay output for warnings and alerts help maintenance teams catch problems early. It mounts on a wall or on DIN-rail with the optional kit.

Features

- Fibre-cable test function validates fibre communication
- Auto baud rate detection with data speeds up to 12 Mbps
- PROFIBUS fail-safe prevents corrupted datagrams in functioning segments
- Fibre inverse feature
- Warnings and alerts by relay output
- 2 kV galvanic isolation protection
- Dual power inputs for redundancy with reverse power protection
- Fibre signal intensity diagnosis
- Fibre link monitor function

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 1 x PROFIBUS DP port (DB9 female)
- 1 x multi-mode ST fibre port, 820 nm
- Baud rate: 9600 bps to 12 Mbps (auto-detect)
- Typical fibre distance: 4 km
- Tx output: -14 dBm, Rx sensitivity: -28 dBm, link budget: 14 dBm
- 2 kV built-in isolation
- Dual power inputs: 12 to 48 VDC, terminal block connector
- Input current: 269 mA @ 12 to 48 VDC
- Overload current protection and reverse power protection
- Metal housing, IP30
- Dimensions: 30.3 x 115 x 70 mm, weight 180 g
- DIN-rail mounting (optional kit) or wall mounting
- Operating temperature: 0 to 60°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% (non-condensing)
- Hazardous location approvals: ATEX, Class I Division 2, IECEx
- MTBF: 1,722,769 hrs

FAQs

Q: What fibre type and connector does the ICF-1180I-M-ST use?
A: It has one multi-mode fibre port with an ST connector, operating at 820 nm, with a typical distance of 4 km.

Q: What baud rates does it support?
A: It supports PROFIBUS DP baud rates from 9600 bps up to 12 Mbps and detects the rate automatically, so no manual configuration is needed.

Q: How is the converter powered?
A: It has two power inputs accepting 12 to 48 VDC via a terminal block, providing redundancy. Reverse power and overload current protection are included.

Q: What is the operating temperature range of this model?
A: This model operates from 0 to 60°C. It is housed in a metal IP30 enclosure.

Q: Does it provide electrical isolation?
A: Yes. It has 2 kV built-in galvanic isolation between the PROFIBUS port and the rest of the circuit.

Q: How is the ICF-1180I-M-ST mounted?
A: It can be wall mounted, or mounted on a DIN-rail using the optional DIN-rail kit.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
