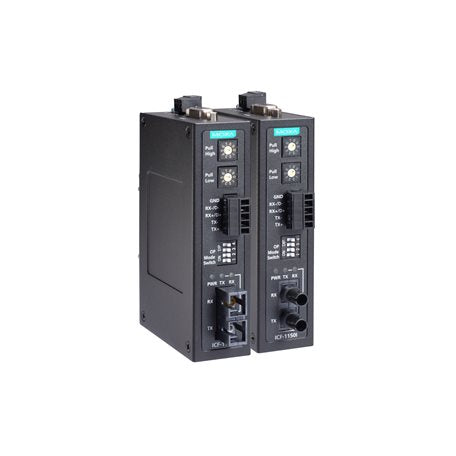

Moxa ICF-1150-S-ST-T-IEX | ICF-1150 Serial to Single-Mode Fibre Converter, ST, IECEx

Authorised Moxa Partner

SKU:ICF-1150-S-ST-T-IEX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa ICF-1150-S-ST-T-IEX is an industrial RS-232/422/485 to single-mode fibre converter with an ST fibre connector, built for long-distance serial transmission in harsh environments. It is IECEx certified for hazardous locations and rated for operation from -40 to 85°C, making it suited to oil and gas, mining, and process automation sites where serial links must run over fibre.

The converter supports baudrates from 50 bps to 921.6 kbps, including non-standard rates, and uses automatic data direction control (ADDC) for RS-485 so no additional flow control wiring is required. Serial connections are made through a 5-pin terminal block (non-isolated), and the ICF-1150 series design extends serial networks beyond the distance limits of copper cabling.

Features

- Supports RS-232, RS-422 and RS-485 serial interfaces
- Single-mode fibre with ST connector for long-distance serial transmission
- Automatic data direction control for RS-485
- Wide-temperature design for harsh industrial environments
- IECEx certification for hazardous locations

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Serial standards: RS-232/422/485
- Baudrate: 50 bps to 921.6 kbps (supports non-standard baudrates)
- Flow control: ADDC (automatic data direction control) for RS-485
- Serial connector: 5-pin terminal block (non-isolated)
- Fibre connector: single-mode ST
- Operating temperature: -40 to 85°C
- Certification: IECEx

FAQs

Q: What serial interfaces does the ICF-1150-S-ST-T-IEX support?
A: It supports RS-232, RS-422 and RS-485 serial interfaces, connected through a 5-pin terminal block.

Q: What type of fibre does this converter use?
A: It uses single-mode fibre with an ST connector, suitable for long-distance serial transmission.

Q: Is this converter suitable for hazardous locations?
A: Yes. It is IECEx certified, so it can be used in hazardous location applications that require this certification.

Q: What temperature range can it operate in?
A: It is rated for operation from -40 to 85°C, suitable for harsh industrial environments.

Q: Does it require flow control wiring for RS-485?
A: No. It uses automatic data direction control (ADDC) for RS-485, so the data direction is handled automatically.

Q: What baudrates are supported?
A: Baudrates from 50 bps to 921.6 kbps are supported, including non-standard baudrates.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
