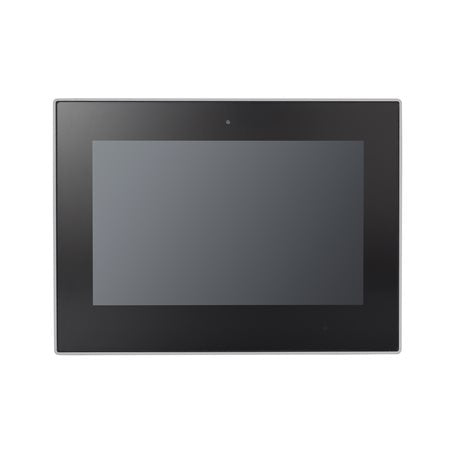

Moxa EXPC-F2120W-TL1-DC | EXPC-F2120W 12.1in Fanless Panel PC, Celeron 6305E, DC

Authorised Moxa Partner

SKU:EXPC-F2120W-TL1-DC

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa EXPC-F2120W-TL1-DC is a 12.1-inch fanless industrial panel PC built on an Intel Celeron 6305E processor with Intel UHD Graphics and a 1200-nit PCAP touchscreen. This DC-input variant runs from a 9 to 36 VDC supply and is designed for control cabinets, machine HMIs and outdoor or sunlit installations where a bright, sealed display computer is required.

The front panel is rated IP66 with IP42 at the rear, and the unit operates from -40 to 70°C without a fan. It provides 4 Ethernet ports, 3 serial ports, VGA and DisplayPort outputs, two DDR4 SODIMM slots supporting up to 64 GB, and an internal M.2 B key slot for SSD storage. The EXPC-F2120W series carries UL C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22 certifications, with 5G and Wi-Fi 6 connectivity options available across the series.

Features

- Fanless design for silent, dust-resistant operation
- IP66 front and IP42 rear ingress protection
- 40 to 70°C wide operating temperature range
- Bright 1200-nit PCAP touchscreen for sunlit and outdoor use
- UL C1D2/C2D2, ATEX and IECEx Zone 2/Zone 22 certified (series)
- Options for 5G and Wi-Fi 6 connections (series)
- UV protection per IEC 60068-2-5
- Wide 9 to 36 VDC power input

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- Processor: Intel Celeron 6305E
- Graphics: Intel UHD Graphics
- Display: 12.1-inch 1200-nit PCAP touchscreen
- Memory: 2 x SODIMM DDR4 slots, up to 64 GB
- Storage: internal M.2 B key slot for SSD
- Ethernet: 4 ports
- Serial: 3 ports
- Video outputs: 1 x VGA, 1 x DisplayPort
- Power input: 9 to 36 VDC
- Ingress protection: IP66 (front) / IP42 (rear)
- Operating temperature: -40 to 70°C
- Dimensions: 336.69 x 255.17 x 94.05 mm
- Weight: 6,200 g
- Operating system: not pre-installed, supports Windows 10 Enterprise LTSC 21H2, Windows 11 Pro 23H2 64-bit and Debian 11 (driver)
- Shock and vibration: IEC 60068-2-27 compliant (with CFexpress card, 20G)

FAQs

Q: What power input does the EXPC-F2120W-TL1-DC use?
A: This model uses a 9 to 36 VDC power input, suited to industrial DC supplies.

Q: Does it come with an operating system installed?
A: No. The OS is not pre-installed. It supports Windows 10 Enterprise LTSC 21H2, Windows 11 Pro 23H2 64-bit and Debian 11 (driver).

Q: How much memory and storage can it take?
A: It has two DDR4 SODIMM slots supporting up to 64 GB and an internal M.2 B key slot for an SSD.

Q: What ingress protection does it have?
A: The front panel is rated IP66 and the rear is rated IP42.

Q: What temperature range can it operate in?
A: It operates from -40 to 70°C with a fanless design.

Q: What I/O ports are available?
A: It provides 4 Ethernet ports, 3 serial ports, 1 VGA and 1 DisplayPort.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
