Moxa DA-820E-C5-LL-T | DA-820E 3U Rackmount Computer, Core i5-1340PE, Dual 48 VDC

Authorised Moxa Partner

SKU:DA-820E-C5-LL-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

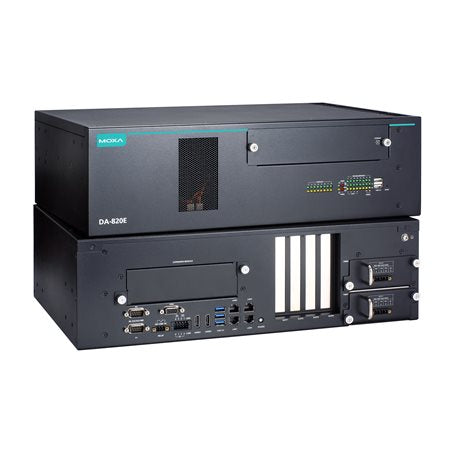

The Moxa DA-820E-C5-LL-T is a 3U IEC 61850-3 rackmount computer built for power-substation automation, powered by a 13th Gen Intel Core i5-1340PE processor with Intel Iris Xe Graphics. It ships with two hot-swappable DA-PWR-120-LV (48 VDC) power modules and operates from -40 to 70°C, making it suited to harsh utility and railway wayside deployments. It complies with IEC 61850-3, IEEE 1613 and IEC 60255.

I/O includes 4 x Gigabit Ethernet ports, 2 x software-selectable RS-232/422/485 serial ports, 6 DI and 2 DO channels, 3 x USB 3.0 and 3 x USB 2.0 ports, plus dual HDMI and VGA video output. Storage options cover four 2.5-inch HDD/SSD slots and an M.2 M-key slot, with up to 64 GB DDR4 memory. One PCIe x8 (4-lane) slot and three PCIe x1 slots allow expansion modules, including PRP/HSR redundancy. Additional modules are sold separately and are required for the system to function.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power-automation applications
- EN 50121-4 compliant for railway wayside use
- 13th Gen Intel Core i5-1340PE processor
- Redundant hot-swappable dual 48 VDC power module design
- Intel RST RAID 0/1 support on SSD slots 1 and 2
- PRP/HSR network redundancy with a PRP/HSR expansion module
- TPM 2.0, UEFI Secure Boot and physical security options
- Wide -40 to 70°C operating temperature range
- PCIe expansion slots for add-on modules

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i5-1340PE with Intel Iris Xe Graphics
- Memory: 2 x SODIMM DDR4 slots, 64 GB max. (3200 MHz, 32 GB max. per module)
- Storage: 4 x 2.5-inch HDD/SSD slots, 1 x M.2 M-key 2280 slot
- Ethernet: 4 x 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485, software-selectable, DB9 male, 2 kV isolation
- Digital I/O: 6 x DI, 2 x DO
- USB: 3 x USB 3.0 (rear), 3 x USB 2.0 (2 front, 1 internal for dongle)
- Video: 2 x HDMI (up to 3840 x 2160 at 60 Hz), 1 x VGA (up to 1920 x 1200 at 60 Hz)
- Expansion: 1 x PCIe x8 (4-lane), 3 x PCIe x1, 1 x proprietary slot
- Security: TPM v2.0, UEFI Secure Boot
- Power: 2 x DA-PWR-120-LV (48 VDC, 3.12 A, 130 W max.) hot-swappable modules included
- Operating temperature: -40 to 70°C
- Dimensions (without ears): 440 x 301 x 132.55 mm
- Weight: 11,860 g
- Standards: IEC 61850-3, IEEE 1613, IEC 60255, EN 50121-4, IEC 62368-1, UL 62368-1
- MTBF: 293,786 hrs (Telcordia SR-332)

FAQs

Q: Which power modules are included with the DA-820E-C5-LL-T?
A: It ships with two hot-swappable DA-PWR-120-LV power modules rated for 48 VDC, providing a redundant power design.

Q: Does this model need additional modules to operate?
A: Yes. Moxa specifies that the DA-820E requires additional modules, sold separately, to function.

Q: Which standards does it meet for substation use?
A: It complies with IEC 61850-3, IEEE 1613 and IEC 60255 for power automation, and EN 50121-4 for railway wayside applications.

Q: How much memory and storage can it hold?
A: It supports up to 64 GB of DDR4 across two SODIMM slots, four 2.5-inch HDD/SSD bays and one M.2 M-key 2280 slot.

Q: Can it support PRP/HSR network redundancy?
A: Yes, PRP/HSR redundancy is available when a PRP/HSR expansion module is fitted in the expansion slots.

Q: Which operating systems are supported?
A: Supported systems include Windows 10 IoT Enterprise LTSC 2021, Windows 11 IoT Enterprise LTSC 2024, Windows Server 2022, Ubuntu 22.04.3 LTS, Debian 12 and RHEL 9.4.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
