Moxa DA-820E-C5-HH-T | DA-820E 3U IEC 61850-3 Rackmount Computer, Core i5-1340PE, Dual PSU

Authorised Moxa Partner

SKU:DA-820E-C5-HH-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

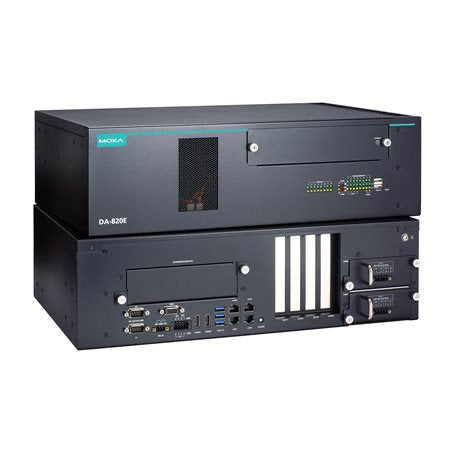

The Moxa DA-820E-C5-HH-T is a 3U IEC 61850-3 rackmount industrial computer built on a 13th Gen Intel Core i5-1340PE processor. It is designed for power substation automation and railway wayside applications, and operates across a -40 to 70°C temperature range. This model ships with dual hot-swappable DA-PWR-150-HV power modules for redundant power.

Connectivity includes 4 Gigabit Ethernet ports, 2 software-selectable RS-232/422/485 serial ports, 6 digital inputs, 2 digital outputs and an alarm relay. Storage and expansion options include 4 hot-swappable 2.5 inch SATA SSD slots with Intel RST RAID 0/1 on slots 1 and 2, an M.2 M-key slot, and PCIe expansion slots. An optional PRP/HSR expansion module adds network redundancy for substation deployments.

Features

- IEC 61850-3, IEEE 1613 and IEC 60255 compliant for power substation automation
- EN 50121-4 compliant for railway wayside applications
- Redundant, hot-swappable power supply design
- PRP/HSR network redundancy with an optional PRP/HSR expansion module
- TPM 2.0, UEFI Secure Boot and physical security options
- Intel RST RAID 0/1 support for SSD slots 1 and 2

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 13th Gen Intel Core i5-1340PE processor (Raptor Lake-P)
- Up to 64 GB DDR4 RAM (2 built-in SODIMM slots)
- 4 x Gigabit Ethernet ports
- 2 x RS-232/422/485 serial ports (software selectable)
- 6 DI, 2 DO and alarm relay
- 3 x USB 3.0 and 2 x USB 2.0 Type-A ports
- 2 x HDMI and 1 x VGA display outputs
- 1 x M.2 M-key slot
- 4 x hot-swappable 2.5 inch SATA SSD slots, Intel RST RAID 0/1 on slots 1 and 2
- 1 x PCIe x8 (4-lane) and 3 x PCIe x1 expansion slots
- Dual DA-PWR-150-HV hot-swappable power modules (100 to 240 VAC/VDC)
- Operating temperature -40 to 70°C
- 3U rackmount chassis

FAQs

Q: What standards does the DA-820E-C5-HH-T comply with?
A: It is compliant with IEC 61850-3, IEEE 1613 and IEC 60255 for power substation automation, and EN 50121-4 for railway wayside applications.

Q: What processor does this model use?
A: This model uses a 13th Gen Intel Core i5-1340PE processor.

Q: Does it include redundant power supplies?
A: Yes. It ships with dual hot-swappable DA-PWR-150-HV power modules supporting 100 to 240 VAC/VDC.

Q: What is the operating temperature range?
A: The DA-820E-C5-HH-T operates from -40 to 70°C.

Q: Does it support RAID?
A: Yes. Intel RST RAID 0/1 is supported on SATA SSD slots 1 and 2 of the 4 hot-swappable 2.5 inch SSD slots.

Q: Can it be used with PRP/HSR networks?
A: Yes, with the optional PRP/HSR expansion module installed, the DA-820E supports PRP/HSR network redundancy.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
