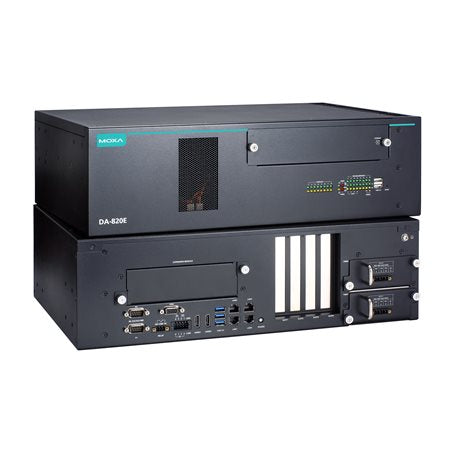

Moxa DA-820E-C3-L-T | DA-820E 3U Rackmount Computer, Core i3-1320PE, Single PSU, -40 to 70C

Authorised Moxa Partner

SKU:DA-820E-C3-L-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa DA-820E-C3-L-T is an IEC 61850-3 compliant 3U rackmount computer built on a 13th Gen Intel Core i3-1320PE processor. This variant ships with one DA-PWR-120-LV hot-swappable power module and is rated for operation from -40 to 70°C, making it well suited to substation automation and other harsh-environment deployments.

Connectivity includes 4 Gigabit Ethernet ports, 2 software-selectable RS-232/422/485 serial ports, 6 digital inputs and 2 digital outputs, with three display outputs and a mix of USB 3.0 and USB 2.0 ports. Four hot-swappable 2.5 inch SATA SSD slots support RAID 0/1, and four PCIe slots plus one proprietary slot allow I/O expansion, including an optional PRP/HSR module for network redundancy.

Features

- IEC 61850-3 compliant 3U rackmount design
- PRP/HSR network redundancy with optional expansion module
- Hot-swappable power module design with 100-240 VAC/VDC and 48 VDC options
- Hot-swappable SSD slots with RAID 0/1 support
- Four PCIe slots plus one proprietary slot for I/O expansion modules
- TPM 2.0 and UEFI Secure Boot for platform security
- Extended -40 to 70°C operating range for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Intel Core i3-1320PE (13th Gen)
- 4 x Gigabit Ethernet ports
- 2 x RS-232/422/485 software-selectable serial ports (DB9)
- 6 x digital inputs, 2 x digital outputs
- 3 x USB 3.0 and 2 x USB 2.0 Type-A ports
- Display outputs: 2 x HDMI, 1 x VGA
- 2 x DDR4 memory sockets, up to 64 GB
- 4 x hot-swappable 2.5 inch SATA SSD slots with Intel RST RAID 0/1
- M.2 expansion
- Expansion: 1 x PCIe x8 (4-lane), 3 x PCIe x1, plus 1 proprietary slot
- 1 x DA-PWR-120-LV hot-swappable power module included (single)
- TPM 2.0 and UEFI Secure Boot
- Operating temperature: -40 to 70°C
- IP30 metal housing, 440 x 301 x 132.55 mm (without ears)

FAQs

Q: Is the DA-820E-C3-L-T IEC 61850-3 compliant?
A: Yes. It is an IEC 61850-3 compliant 3U rackmount computer designed for substation automation environments.

Q: What is included in terms of power supply?
A: This variant includes one DA-PWR-120-LV hot-swappable power module. The chassis uses a hot-swappable power module design, with 100-240 VAC/VDC and 48 VDC module options available.

Q: Does it support network redundancy such as PRP/HSR?
A: PRP/HSR redundancy is available through an optional PRP/HSR expansion module, which is not included with this unit.

Q: What storage and RAID options are supported?
A: It has four hot-swappable 2.5 inch SATA SSD slots supporting Intel RST RAID 0/1, plus M.2 expansion.

Q: How much memory can it support?
A: It has two DDR4 sockets supporting up to 64 GB of memory.

Q: What operating temperature range does it support?
A: This variant operates from -40 to 70°C.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
