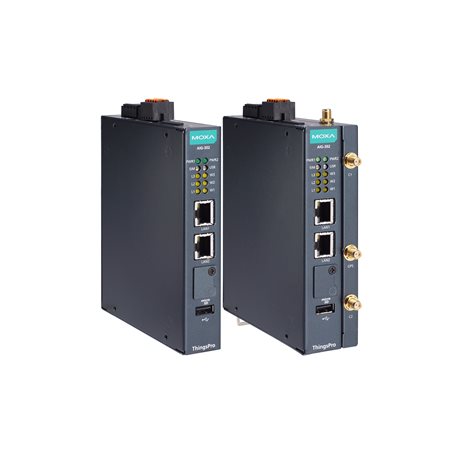

Moxa AIG-302-US-AZU-LX | AIG-302 IIoT Gateway, LTE Cat. 4, Azure IoT Edge, US

Authorised Moxa Partner

SKU:AIG-302-US-AZU-LX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AIG-302-US-AZU-LX is a programmable IIoT gateway built for the US region, combining LTE Cat. 4 cellular connectivity with Azure IoT Edge software. It connects Modbus RTU, ASCII and TCP devices to Azure cloud services and MQTT brokers, making it well suited to remote monitoring and industrial data acquisition deployments.

Powered by a dual-core 1 GHz Arm Cortex-A7 processor with 2 GB DDR3L memory and 32 GB eMMC storage, the gateway runs Moxa Industrial Linux. Dual Gigabit Ethernet, two software-selectable RS-232/422/485 serial ports, CAN, digital I/O and dual Nano SIM slots give flexible connectivity, while the built-in TPM 2.0 supports secure edge deployments.

Features

- Connects Modbus RTU, ASCII and TCP devices to Azure cloud and MQTT
- Azure IoT Edge software support
- LTE Cat. 4 cellular connectivity for the US region
- Dual Nano SIM slots for cellular flexibility
- Built-in TPM 2.0 security
- Dual Gigabit Ethernet and multiple serial, CAN and I/O interfaces

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Armv7 Cortex-A7 dual-core 1 GHz
- Memory: 2 GB DDR3L DRAM
- Storage: 32 GB eMMC pre-installed
- OS: Moxa Industrial Linux (Debian 11, kernel 5.10.x)
- Ethernet: 2 x 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485, software-selectable (DB9 male)
- CAN: 1 x CAN 2.0 A/B (DB9 male)
- Digital I/O: 4 x DI, 4 x DO
- USB: 1 x USB 2.0 host (Type-A)
- Cellular: LTE Cat. 4 (US region module preinstalled), mPCIe slot
- SIM: 2 x Nano SIM slots
- Security: TPM v2.0
- Capacity: supports 3000 tags
- Protocols: Modbus TCP Client/Server, Generic MQTT, Azure IoT Device, Azure IoT Edge
- Power connector: 4-pin terminal block

FAQs

Q: Which cloud platforms does the AIG-302-US-AZU-LX support?
A: It supports Azure IoT Edge and Azure IoT Device, as well as generic MQTT, so it can send Modbus device data to Azure cloud services or other MQTT brokers.

Q: Is this model suitable for use outside the US?
A: This SKU includes a US region LTE Cat. 4 module. Other regions use different regional variants within the AIG-302 family, so choose the model that matches your carrier region.

Q: What industrial protocols and interfaces does it provide?
A: It offers Modbus TCP Client/Server, with two software-selectable RS-232/422/485 serial ports for Modbus RTU/ASCII, plus one CAN 2.0 A/B port and 4 DI / 4 DO.

Q: What operating system does the gateway run?
A: It runs Moxa Industrial Linux, based on Debian 11 with kernel 5.10.x.

Q: How many SIM slots and what cellular connectivity does it have?
A: It has two Nano SIM slots and a preinstalled US region LTE Cat. 4 module on an mPCIe slot.

Q: How many data tags can the gateway handle?
A: The AIG-302 platform supports up to 3000 tags.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
