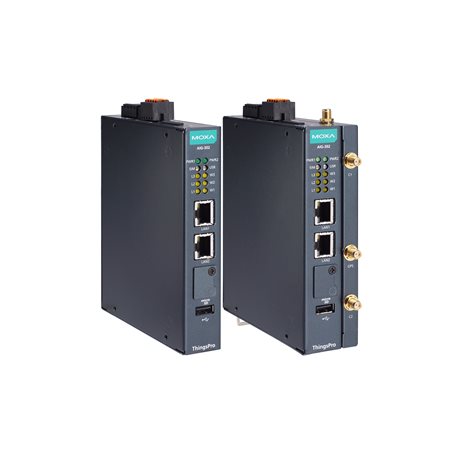

Moxa AIG-302-T-AP-AZU-LX | AIG-302 Industrial IIoT Gateway, Azure IoT Edge, AP, -40 to 70C

Authorised Moxa Partner

SKU:AIG-302-T-AP-AZU-LX

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The Moxa AIG-302-T-AP-AZU-LX is a programmable industrial IIoT gateway for the Asia-Pacific region, built to connect Modbus RTU/ASCII/TCP field devices to MQTT and Azure cloud platforms. It runs Azure IoT Edge on an Armv7 Cortex-A7 dual-core 1 GHz processor and operates across a -40 to 70°C temperature range, making it suited to harsh industrial sites and remote installations.

With 2 GB DDR3L memory, 32 GB eMMC storage, dual Gigabit Ethernet, two software-selectable RS-232/422/485 serial ports, CAN 2.0 A/B and digital I/O, it consolidates protocol conversion and edge processing in one DIN-rail unit. An mPCIe expansion slot and antenna connectors for Wi-Fi, cellular and GPS allow wireless connectivity to be added to match the deployment.

Features

- Generic MQTT client with built-in device SDKs tailored for Azure cloud integration
- Modbus RTU/ASCII/TCP client and Modbus TCP server
- Azure IoT Edge support
- Built-in network traffic monitoring and diagnostic tool
- Robust OTA function to prevent system failure during software upgrades
- Secure Boot to prevent malicious software-injection attacks
- External watchdog timer (WDT)
- Wide -40 to 70°C operating temperature for harsh environments

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- CPU: Armv7 Cortex-A7 dual-core 1 GHz
- Memory: 2 GB DDR3L
- Storage: pre-installed 32 GB eMMC
- Ethernet: 2 x 10/100/1000 Mbps (RJ45)
- Serial: 2 x RS-232/422/485, software-selectable (DB9 male)
- CAN: 1 x CAN 2.0 A/B (DB9 male)
- Digital I/O: 4 x digital inputs, 4 x digital outputs
- USB: 1 x USB 2.0 host (Type-A)
- Expansion: 1 x mPCIe slot
- Antenna connectors: 2 x RP-SMA Wi-Fi, 2 x SMA cellular, 1 x SMA GPS
- Housing: metal SECC, IP30
- Dimensions: 141.5 x 120 x 39 mm
- Weight: 750 g
- Operating temperature: -40 to 70°C
- Storage temperature: -40 to 85°C
- Humidity: 5 to 95% (non-condensing)
- Mounting: DIN-rail, wall mounting with optional kit
- Region: AP (Asia-Pacific)

FAQs

Q: Does the AIG-302-T-AP-AZU-LX support Azure IoT Edge?
A: Yes. This model runs Azure IoT Edge software and includes a generic MQTT client with built-in device SDKs tailored for Azure cloud integration.

Q: Which industrial protocols does it support?
A: It works as a Modbus RTU/ASCII/TCP client and a Modbus TCP server, and converts Modbus data to MQTT for cloud platforms.

Q: What operating temperature range does it support?
A: The gateway operates from -40 to 70°C, with a storage range of -40 to 85°C and 5 to 95% non-condensing humidity.

Q: What interfaces and expansion options are available?
A: It provides 2 x Gigabit Ethernet, 2 x RS-232/422/485 serial ports, 1 x CAN 2.0 A/B, 4 digital inputs, 4 digital outputs, 1 x USB 2.0 host and an mPCIe expansion slot. Antenna connectors cover Wi-Fi, cellular and GPS.

Q: How is the gateway mounted?
A: It mounts on a DIN rail as standard. Wall mounting is available with the optional wall-mount kit.

Q: What does the AP in the part number mean?
A: AP denotes the Asia-Pacific regional variant. Other AIG-302 models cover different regions and cellular configurations.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
