Moxa 45MR-2601 | ioThinx 4500 16-Channel Source DO Module, 24 VDC, -20 to 60°C

Moxa 45MR-2601 | ioThinx 4500 16-Channel Source DO Module, 24 VDC, -20 to 60°C

Authorised Moxa Partner

45MR-2601

Stock Status: Enquire

Request Quote
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

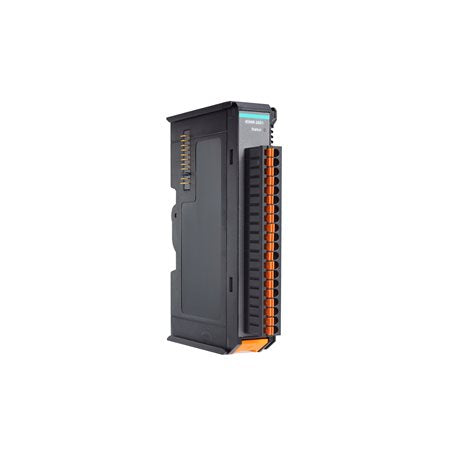

The Moxa 45MR-2601 is a 16-channel digital output I/O module for the ioThinx 4500 Series modular advanced controllers and I/Os. It provides sourcing 12/24 VDC outputs rated at 500 mA per channel, with the first 4 channels also configurable as 1 kHz pulse outputs. Designed for standard-temperature industrial edge connectivity, it operates from -20 to 60°C.

The module uses spring-type Euroblock terminals for tool-free field wiring and provides 3k VDC field-side isolation. Its compact 19.5 x 99 x 60.5 mm plastic housing and hot-swappable design make it a practical way to add digital output capacity to ioThinx 4500 Series systems.

Features

- Hot-swappable expansion module for the ioThinx 4500 Series
- Spring-type Euroblock terminals for tool-free wiring
- Pulse output capability on the first 4 channels
- Field-side isolation protection

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 16 x digital output channels
- Output type: Source
- I/O mode: DO or pulse output (first 4 channels only)
- Pulse output frequency: 1 kHz
- External power: 12/24 VDC
- Current rating: 500 mA per channel
- Isolation: 3k VDC or 2k Vrms
- Connector: Spring-type Euroblock terminal
- Over-temperature shutdown: 175°C typical, 150°C min.
- System power consumption: 63.8 mA @ 3.3 VDC
- Field power consumption: 10.8 mA @ 12 VDC / 10.8 mA @ 24 VDC
- Housing: Plastic
- Dimensions: 19.5 x 99 x 60.5 mm
- Weight: 77 g (0.17 lb)
- Operating temperature: -20 to 60°C
- MTBF: 660,179 hrs

FAQs

Q: What is the Moxa 45MR-2601 used for?
A: It is a 16-channel digital output expansion module for ioThinx 4500 Series modular controllers and I/Os, used to drive field devices such as relays, indicators and actuators.

Q: Are the digital outputs sourcing or sinking?
A: The outputs are source type, supplied from an external 12/24 VDC field power supply, with a current rating of 500 mA per channel.

Q: Can any channel be used as a pulse output?
A: Pulse output mode is available on the first 4 channels only, at a frequency of up to 1 kHz. The remaining channels operate as standard digital outputs.

Q: What operating temperature range does this module support?
A: The 45MR-2601 is rated for operation from -20 to 60°C, the standard-temperature variant of this module.

Q: How is the module wired?
A: It uses spring-type Euroblock terminals, allowing tool-free field wiring.

Q: What isolation does the module provide?
A: It provides 3k VDC (2k Vrms) isolation on the field side.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.
