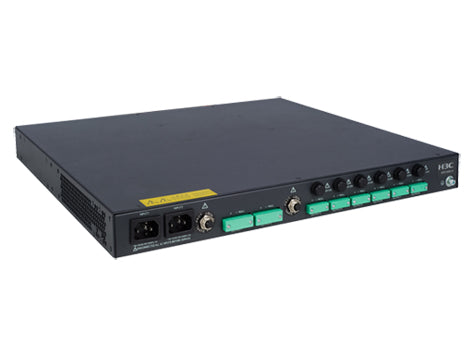

HPE JG136A | RPS1600 Redundant Power System, 1U, Chassis Only

Name: HPE JG136A | RPS1600 Redundant Power System, 1U, Chassis Only
Brand: HPE
SKU: JG136A
Price: 2338.71 AUD
Availability: InStock

Authorised HPE Partner

SKU:JG136A

In stock:1

$3,164.13 Save 26%

$2,338.71 inc. GST

$2,126.10 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The HPE RPS1600 JG136A is an external redundant power system that takes AC input and supplies multiple DC output lines to back up or supplement the internal power supplies of compatible HPE switches such as the 5500 series. This listing is the RPS1600 chassis only; the JG137A 1600W AC power supply module is a separate part and must be added to populate the system.

With 8 redundant -56V DC output ports, including 2 x 25A PoE-capable outputs, the RPS1600 helps keep PoE switches running if an internal power supply fails. It is compatible with HPE 1910, 1920, 1950, 3100, 3600, 5120, 5130, 5500 (EI and SI PoE models), 5820X and 830 series switches, and mounts in a standard 1U rack space.

Features

- Provides backup DC power to up to 8 devices at once, such as switches and routers
- Compatible with HPE 1910, 1920, 1950, 3100, 3600, 5120, 5130, 5500 (EI and SI PoE models), 5820X and 830 series switches
- Listed as a power supply option for the HPE 5500 EI Switch Series
- Keeps PoE switches running if the internal power supply fails
- Compact 1U rack-mount form factor

Warranty

Hewlett Packard Enterprise (HPE) offers a standard limited hardware warranty on its products, with coverage periods varying by product line. For instance, HPE ProLiant servers typically come with a 1 to 3-year limited warranty, while other products may have different durations.
Extended Warranty Options via IP Trading:
IP Trading offers tailored extended warranty solutions and support packages for HPE products, ensuring your IT infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- Part number: JG136A
- Product type: Redundant Power System, chassis only
- 8 redundant DC power output ports: 2 x -56V/25A (PoE) and 6 x -56V/8A (non-PoE)
- Maximum output: 3200 W at 220 V AC input, 1600 W at 110 V AC input
- Input: AC 100-120/200-240 V, 50/60 Hz
- Output voltage: -56 V DC
- Redundancy scheme: 1+1 (with optional power supply)
- Supports 2 power modules (JG137A RPS1600 1600W AC power supply is the companion module)
- Form factor: 1U rack mount, 44 x 39.7 x 4.4 cm (17.32 x 15.63 x 1.74 in)
- Weight: approximately 6.4 kg (14.11 lb)
- Operating temperature: -10 to 50 °C
- Operating humidity: 5-95%

FAQs

Q: Does the JG136A include a power supply module?
A: No. The JG136A is the RPS1600 chassis only. The JG137A RPS1600 1600W AC power supply module is a separate part and is required to supply power.

Q: Which HPE switches is the RPS1600 compatible with?
A: It is compatible with HPE 1910, 1920, 1950, 3100, 3600, 5120, 5130, 5500 (EI and SI PoE models), 5820X and 830 series switches.

Q: How many devices can the RPS1600 back up at once?
A: It has 8 redundant DC output ports, so it can back up up to 8 devices at the same time. Two ports are -56V/25A PoE outputs and six are -56V/8A non-PoE outputs.

Q: What is the maximum output power?
A: The maximum output is 3200 W at 220 V AC input and 1600 W at 110 V AC input.

Q: What is the input voltage range?
A: The input is AC 100-120/200-240 V at 50/60 Hz.

Q: What are the rack space and weight requirements?
A: The RPS1600 is a 1U rack-mount unit measuring 44 x 39.7 x 4.4 cm and weighs approximately 6.4 kg.
