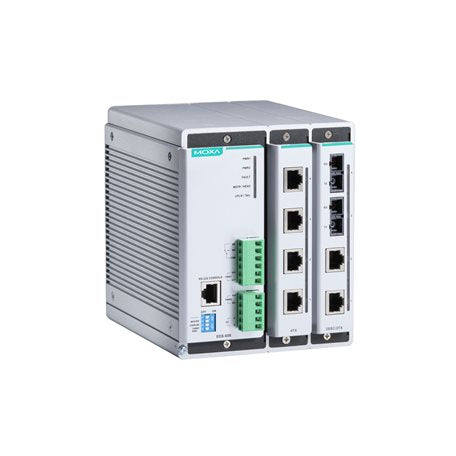

Moxa EDS-608 | EDS-600 Modular Managed Switch, 2 Module Slots, 0-60C

Authorised Moxa Partner

SKU:EDS-608

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Stock Status: Enquire

Description

The Moxa EDS-608 is a compact, DIN-rail modular managed Layer 2 industrial Ethernet switch with two slots for 4-port CM-600 interface modules, giving up to 8 Fast Ethernet ports in 10/100BaseT(X) copper or 100BaseFX fibre combinations. This standard temperature model operates from 0 to 60°C and ships without modules, so you choose the copper and fibre mix to suit the installation.

Turbo Ring and Turbo Chain redundancy recover in under 20 ms (at 250 switches), with STP, RSTP and MSTP also supported. Redundant 12/24/48 VDC power inputs, an IP30 housing and a relay alarm output suit factory floors, control rooms and cabinet deployments. EtherNet/IP and Modbus TCP support allow management and monitoring from industrial automation systems.

Features

- Modular design supports 4-port copper and fibre combinations
- Hot-swappable media modules for continuous operation
- Turbo Ring and Turbo Chain redundancy with recovery under 20 ms at 250 switches, plus STP/RSTP/MSTP
- TACACS+, SNMPv3, IEEE 802.1X, HTTPS and SSH for network security
- Management via web browser, CLI, Telnet or serial console, Windows utility and ABC-01
- Supports MXstudio for visualised industrial network management
- EtherNet/IP and Modbus TCP for device management and monitoring, compatible with PROFINET
- IGMP snooping/GMRP, 802.1Q VLAN with GVRP, QoS, port trunking, bandwidth management and port mirroring
- Automatic warning by exception through email and relay output

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 2 slots for 4-port interface modules, 10/100BaseT(X) and/or 100BaseFX, up to 8 Fast Ethernet ports
- Layer 2 managed switch
- Operating temperature 0 to 60°C, storage -40 to 85°C
- Redundant dual 12/24/48 VDC power inputs, removable 6-contact terminal block
- Overload current and reverse polarity protection
- MAC table 8K, 64 VLANs, 256 IGMP groups, 1 Mbit packet buffer, 4 priority queues
- RS-232 console port (10-pin RJ45), relay alarm output 1 A @ 24 VDC
- IP30 rating, DIN-rail mounting, wall mounting with optional kit
- Dimensions 125 x 151 x 157.4 mm, weight 1,950 g
- Approvals include ATEX, Class I Division 2, ABS, DNV-GL, LR, NK, EN 50121-4, UL 508, NEMA TS2
- MTBF 596,219 hours (Telcordia)
- Package includes switch and RJ45-to-DB9 console cable. CM-600 modules sold separately

FAQs

Q: Does the EDS-608 include interface modules?
A: No. The EDS-608 has two empty module slots and CM-600 series 4-port modules must be purchased separately.

Q: How many ports can the EDS-608 support?
A: Fitting two 4-port CM-600 modules gives up to 8 Fast Ethernet ports, in any combination of 10/100BaseT(X) copper and 100BaseFX fibre.

Q: What operating temperature range does this model support?
A: The standard EDS-608 operates from 0 to 60°C. It is intended for controlled industrial environments rather than extended-temperature installations.

Q: What redundancy options are available?
A: Turbo Ring v1/v2 and Turbo Chain recover in under 20 ms at 250 switches. STP, RSTP, MSTP and link aggregation are also supported.

Q: How is the switch powered?
A: It has redundant dual 12/24/48 VDC inputs on a removable 6-contact terminal block, with overload and reverse polarity protection.

Q: Does it support industrial automation protocols?
A: Yes. EtherNet/IP and Modbus TCP are supported for device management and monitoring, and it is compatible with PROFINET.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
