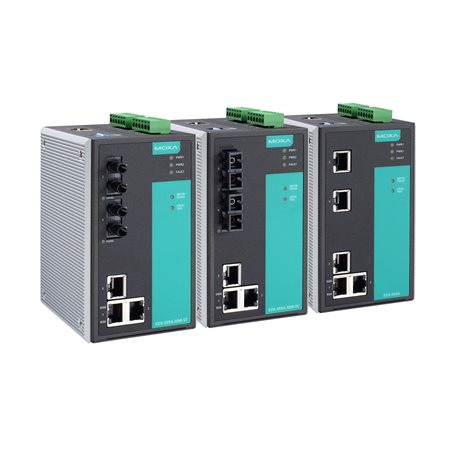

Moxa EDS-505A Managed Ethernet Switch With 5 10/100Baset(X) Ports, 0 To 60 C Operating Temperature

The Moxa EDS-505A is a high-performance managed Ethernet switch that features 5 versatile 10/100BaseT(X) ports. Designed for industrial applications, it operates seamlessly within a temperature range of 0 to 60°C. The switch offers robust network management, enhanced security features, and advanced redundancy options, ensuring reliable and efficient data transmission in demanding environments. Its rugged design makes it ideal for sectors like transportation, energy, and manufacturing, where reliability and durability are paramount. Experience superior network control and stability with the Moxa EDS-505A Ethernet switch.

REQUEST A QUOTE today, and let us provide you with a prompt and professional response tailored just for you. Experience the highest standard of service at unbeatable prices.

Moxa EDS-505A Managed Ethernet Switch With 5 10/100Baset(X) Ports, 0 To 60 C Operating Temperature


  • 5 10/100BaseT(X) Ethernet ports
  • Advanced network management functions such as QoS, IGMP snooping, VLAN, and port mirroring
  • Redundant Ethernet technologies (STP/RSTP) to increase reliability and availability
  • Support for SNMP V1/V2c/V3 for network management
  • Compact size for easy installation in space-constrained environments
  • User-friendly web-based management interface
  • Wide operating temperature range from 0 to 60 °C
  • Rugged industrial design for harsh environments

Technical Specifications

  • Ports: 5 x 10/100BaseT(X) Ethernet ports
  • Standard: IEEE 802.3, 802.3u, 802.3x
  • Protocols: IGMP V1/V2, GMRP, GVRP, SNMP V1/V2c/V3, DHCP, RSTP, STP
  • VLAN: Up to 64 VLANs, port-based and IEEE 802.1Q tag-based VLAN
  • Forwarding Rate: 14,880 pps for 10 Mbps, 148,800 pps for 100 Mbps
  • Switching Capacity: 1 Gbps
  • MAC Table Size: 1 K entries
  • Power Input: 12/24/48 VDC redundant dual input
  • Power Consumption: 5.84 W maximum
  • Operating Temperature: 0 to 60 °C
  • Housing: Metal, IP30 protection
  • Mounting: DIN-Rail or wall mounting
  • Dimensions: 53.6 x 135 x 105 mm (W x H x D)
  • Weight: Approx. 790g
  • Certification: CE, FCC, UL/cUL Class I Division 2

Frequent Ask Questions

  • What are the key features of the Moxa EDS-505A Managed Ethernet Switch?

    The Moxa EDS-505A Managed Ethernet Switch comes with 5 10/100BaseT(X) ports, supports a wide operating temperature range of 0 to 60 degrees Celsius, and offers advanced network management and redundancy features.

  • What is the operating temperature range for the Moxa EDS-505A?

    The Moxa EDS-505A is designed to operate in temperatures ranging from 0 to 60 degrees Celsius.

  • What type of ports does the Moxa EDS-505A have?

    The Moxa EDS-505A is equipped with 5 10/100BaseT(X) Ethernet ports.

  • What network management features are available in the Moxa EDS-505A?

    The Moxa EDS-505A includes advanced network management features such as support for SNMP, RMON, and QoS, making it suitable for a wide range of industrial applications.

  • Is the Moxa EDS-505A suitable for industrial applications?

    Yes, the Moxa EDS-505A is designed for industrial environments, with robust features such as redundancy support, wide operating temperature range, and advanced network management capabilities.

  • Does the Moxa EDS-505A support redundant power inputs?

    Yes, the Moxa EDS-505A supports redundant power inputs to ensure continuous operation in case one power source fails.

  • What mounting options does the Moxa EDS-505A offer?

    The Moxa EDS-505A can be easily mounted on a DIN rail or can be wall-mounted, providing flexible installation options to suit various environments.
