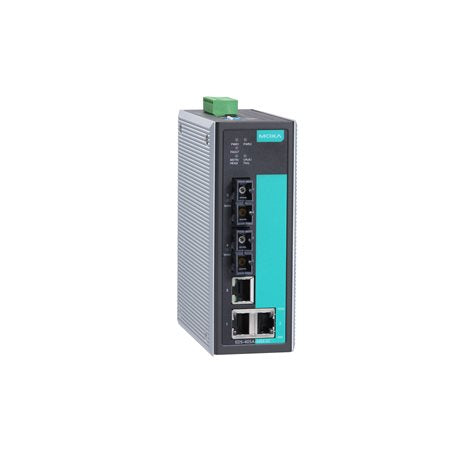

Moxa EDS-405A-SS-SC-T | EDS-405A Managed Switch, 2x SM SC 40km, 3x RJ45, -40-75C

Authorised Moxa Partner

SKU:EDS-405A-SS-SC-T

Stock Status: Enquire

Request Quote

Sale Stock Status: Enquire

Shipping calculated at checkout.

Description

The EDS-405A-SS-SC-T is an entry-level managed industrial Ethernet switch with 3 x 10/100BaseT(X) RJ45 ports and 2 x 100BaseFX single-mode SC fibre ports with a typical reach of 40 km. Rated for -40 to 75°C operation, it suits harsh industrial environments such as factory floors, transport infrastructure and outdoor cabinets where long-distance fibre uplinks are required.

Turbo Ring and Turbo Chain redundancy keep the network resilient, while redundant dual 12/24/48 VDC power inputs and a relay alarm output support dependable operation. The rugged IP30 metal housing mounts on a DIN rail, and the switch supports up to 64 VLANs and 256 IGMP groups for traffic segmentation and multicast control.

Features

- Turbo Ring and Turbo Chain redundancy for fast network recovery
- Redundant dual 12/24/48 VDC power inputs
- Relay alarm output for fault warning
- Wide -40 to 75°C operating temperature for harsh environments
- Rugged IP30 metal housing with DIN-rail mounting
- DIP switch configuration for Turbo Ring, Master, Coupler and Reserve

Warranty

Moxa offers varying warranty periods depending on the product category:
• 5-Year Warranty: Applies to most industrial networking and connectivity products, including Ethernet switches, routers, wireless devices, serial converters, protocol gateways, and USB hubs.
• 3-Year Warranty: Covers x86-based industrial computers and panel PCs.
• 1-Year Warranty: Applies to external batteries, LCD panels, power adapters, antennas, and other select accessories.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Moxa products. Contact our team to explore options that align with your organization's needs.
https://www.moxa.com/en/support/repair-and-warranty/warranty-policy

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Datasheet

Technical Specifications

- 3 x 10/100BaseT(X) RJ45 ports
- 2 x 100BaseFX single-mode SC ports, 40 km typical distance, 1310 nm
- Auto negotiation, full/half duplex, auto MDI/MDI-X
- MAC table size 2 K, packet buffer 1 Mbits, 4 priority queues
- Up to 64 VLANs (VID 1 to 4094), 256 IGMP groups
- Input voltage 12/24/48 VDC, redundant dual inputs, operating voltage 9.6 to 60 VDC
- Overload current and reverse polarity protection
- Relay alarm output, 1 A @ 24 VDC
- RS-232 console port (10-pin RJ45)
- IP30 metal housing, 53.6 x 135 x 105 mm, 650 g
- DIN-rail mounting, wall mounting with optional kit
- Operating temperature -40 to 75°C, humidity 5 to 95% non-condensing
- Safety: UL 508, UL 60950-1, EMC: EN 55032/35, CISPR 32, FCC Part 15B Class A

FAQs

Q: What fibre type and distance does the EDS-405A-SS-SC-T support?
A: It has two 100BaseFX single-mode SC ports for G.652 fibre, with a typical distance of 40 km at 1310 nm.

Q: What is the operating temperature range?
A: This -T model is rated for -40 to 75°C (-40 to 167°F), suitable for harsh industrial environments.

Q: How is the switch powered?
A: It accepts redundant dual 12/24/48 VDC inputs (9.6 to 60 VDC operating range) via a removable 6-contact terminal block.

Q: Does it support ring redundancy?
A: Yes. It supports Turbo Ring and Turbo Chain redundancy, and ring settings can be configured with the onboard DIP switches.

Q: How is it mounted?
A: It mounts on a DIN rail as standard, and wall mounting is available with an optional kit.

Q: What network segmentation features are included?
A: It supports up to 64 VLANs (VID 1 to 4094) and 256 IGMP groups with 4 priority queues.

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .
