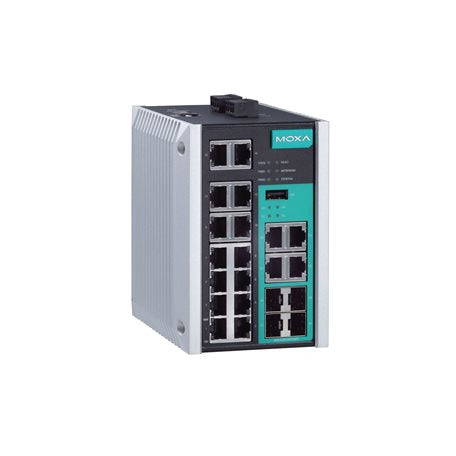

Moxa EDS-518E-MM-ST-4GTXSFP-T 14+4G Port Managed Switch, 12 Fast Tp, 2 Multimode St, 4 Combo Giga Tp/Sfp, -10 To 60C

The Moxa EDS-518E-MM-ST-4GTXSFP-T is a high-performance managed switch designed for robust industrial network applications. It features 12 Fast Ethernet TP ports, 2 Multimode ST fiber ports, and 4 combo Gigabit Ethernet TP/SFP slots, providing flexible connectivity options. Engineered to operate in a temperature range of -10 to 60°C, this switch ensures reliable performance in challenging environments. Its advanced management capabilities, such as network redundancy, security, and diagnostics, make it an excellent choice for demanding industrial networks.

REQUEST A QUOTE today, and let us provide you with a prompt and professional response tailored just for you. Experience the highest standard of service at unbeatable prices.

Moxa EDS-518E-MM-ST-4GTXSFP-T 14+4G Port Managed Switch, 12 Fast Tp, 2 Multimode St, 4 Combo Giga Tp/Sfp, -10 To 60C

Features

  • 14 Fast Ethernet ports: 12x 10/100BaseT(X) and 2x 100BaseFX multi-mode ST
  • 4 Combo Gigabit Ethernet ports: 10/100/1000BaseT(X) or 100/1000BaseSFP slots
  • Wide operating temperature range from -10 to 60°C
  • Enhanced network security with advanced VLAN, QoS, and IGMP snooping
  • Redundancy protocols such as Turbo Ring and Turbo Chain
  • User-friendly web interface, Telnet/Serial Console, SNMP v1/v2c/v3 for easy management
  • Supports IPv6 for latest network requirements
  • IEC 61850-3 certified for power substation automation systems
  • DIN-Rail or Wall mounting options
  • High EMC protection for industrial environments

Technical Specifications

  • Fast Ethernet Ports: 12x 10/100BaseT(X)
  • Fast Ethernet Fiber Ports: 2x 100BaseFX multi-mode ST
  • Gigabit Ethernet Ports: 4x 10/100/1000BaseT(X) or SFP combo
  • Switching Capacity: 36 Gbps
  • Packet Forwarding Rate: 26.78 Mpps
  • MAC Table: 8K address entries
  • Jumbo Frame: 9.6 KB
  • Operating Temperature: -10 to 60°C (14 to 140°F)
  • Power Input: 24/48 VDC(18 to 72 VDC), redundant dual inputs
  • Dimensions: 135 x 105 x 106 mm (5.31 x 4.13 x 4.17 in)
  • Weight: 1,170 g (2.58 lb)
  • Mounting: DIN-Rail or Wall Mounting
  • LED Indicators: PWR1, PWR2, FAULT, MSTR/HEAD, CPLR/TAIL, 10/100M(FX), 10/100/1000M(SFP)
  • Standards: UL 508, CE, IEC 61850-3, IEEE 1613
  • Management Interface: Web Console, Telnet/Serial Console, SNMP v1/v2c/v3, RMON

Frequent Ask Questions

  • What is the function of the Moxa EDS-518E-MM-ST-4GTXSFP-T managed switch?

    The Moxa EDS-518E-MM-ST-4GTXSFP-T is a managed Ethernet switch that provides reliable and rugged connectivity solutions with 12 fast Ethernet ports, 2 multimode ST ports, and 4 combo gigabit TP/SFP ports.

  • What are the temperature operating conditions for the Moxa EDS-518E-MM-ST-4GTXSFP-T?

    The switch is designed to operate under a temperature range of -10°C to 60°C.

  • How many gigabit ports does the Moxa EDS-518E-MM-ST-4GTXSFP-T have?

    The switch includes 4 combo gigabit TP/SFP ports.

  • Can the Moxa EDS-518E-MM-ST-4GTXSFP-T handle both standard and high-performance network traffic?

    Yes, the switch comes with managed capabilities and a blend of fast Ethernet and gigabit ports which make it suitable for handling both standard and high-performance network traffic.

  • What type of fiber optic ports does the switch include?

    The switch includes 2 multimode ST fiber optic ports.

  • Is the Moxa EDS-518E-MM-ST-4GTXSFP-T suitable for industrial environments?

    Yes, the Moxa EDS-518E-MM-ST-4GTXSFP-T is designed for rugged and reliable performance in industrial environments, adhering to industrial-grade specifications.
