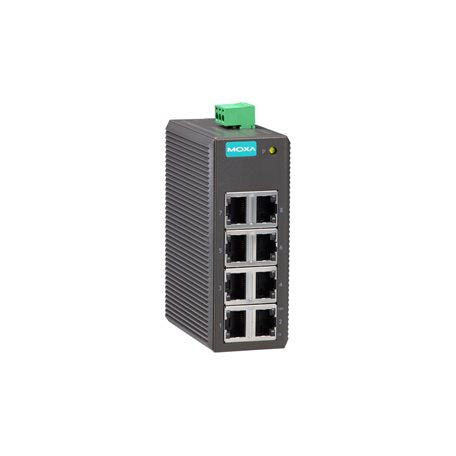

Moxa EDS-208-M-SC Entry-Level Unmanaged Ethernet Switch With 7 10/100Baset(X) Ports, 1 100Basefx Multi-Mode Port With Sc Connector, Plastic Housing, -10 To 60 C Operating Temperature

The Moxa EDS-208-M-SC is an entry-level unmanaged Ethernet switch designed for reliable network connectivity. It features 7 10/100BaseT(X) ports for fast and efficient data transfer, along with 1 100BaseFX multi-mode port equipped with an SC connector for extended distance communications. Encased in a durable plastic housing, this switch operates seamlessly within a temperature range of -10 to 60°C, making it ideal for various industrial applications. Enjoy robust performance and straightforward setup with the Moxa EDS-208-M-SC Ethernet switch.

REQUEST A QUOTE today, and let us provide you with a prompt and professional response tailored just for you. Experience the highest standard of service at unbeatable prices.

Moxa EDS-208-M-SC Entry-Level Unmanaged Ethernet Switch With 7 10/100Baset(X) Ports, 1 100Basefx Multi-Mode Port With Sc Connector, Plastic Housing, -10 To 60 C Operating Temperature

Features

  • Entry-level unmanaged ethernet switch
  • 7 10/100BaseT(X) ports for reliable connectivity
  • 1 100BaseFX multi-mode port with SC connector for fiber-optic communication
  • Durable plastic housing designed for industrial use
  • Operating temperature range of -10 to 60°C, suitable for various environments
  • Compact size optimized for installation in space-constrained areas
  • Ideal for simple industrial network applications

Technical Specifications

  • Product: Moxa EDS-208-M-SC
  • Dimensions: 53.6 x 135 x 105 mm
  • Weight: 230g
  • Casing: Plastic housing
  • Number of Ports:
    • 7 x 10/100BaseT(X) ports (RJ45 connectors)
    • 1 x 100BaseFX multi-mode port (SC connector)
  • Input Voltage: 12 to 48 VDC, redundant dual inputs
  • Power Consumption: 317mA @ 12VDC, 158mA @ 24VDC, 79mA @ 48VDC
  • Operating Temperature: -10 to 60°C
  • Storage Temperature: -40 to 85°C
  • Humidity: 5% to 95% (non-condensing)
  • MTBF (Mean Time Between Failures): 97,874 hrs
  • Standards and Certifications: CE, FCC, UL508
  • Switch Properties:
    • Switching bandwidth: 1.6 Gbps
    • Max. packet forwarding rate: 1.19 Mpps

Frequent Ask Questions

  • What are the key features of the Moxa EDS-208-M-SC Ethernet Switch?

    The key features include 7 10/100BaseT(X) ports, 1 100BaseFX multi-mode port with SC connector, plastic housing, and an operating temperature range of -10 to 60 degrees Celsius.

  • What type of housing does the Moxa EDS-208-M-SC have?

    The Moxa EDS-208-M-SC features a plastic housing.

  • What is the operating temperature range for the Moxa EDS-208-M-SC?

    The operating temperature range for this switch is -10 to 60 degrees Celsius.

  • How many ports does the Moxa EDS-208-M-SC Ethernet switch have?

    This switch has a total of 8 ports: 7 10/100BaseT(X) ports and 1 100BaseFX multi-mode port with SC connector.

  • What is the function of the 100BaseFX port on the Moxa EDS-208-M-SC?

    The 100BaseFX port on the Moxa EDS-208-M-SC is a multi-mode fiber optic port with an SC connector, used for extending the network over longer distances.

  • Is the Moxa EDS-208-M-SC an unmanaged switch?

    Yes, the Moxa EDS-208-M-SC is an entry-level unmanaged Ethernet switch.
