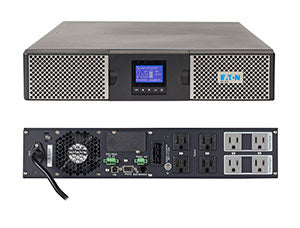

• Eaton 9PX1000RT 9PX UPS rack with black silver design, display, ports, outlets
1 1

Eaton

Eaton 9PX1000RT | 9PX 1000VA/900W Online Rack/Tower UPS, 2U, 120V

Eaton 9PX1000RT | 9PX 1000VA/900W Online Rack/Tower UPS, 2U, 120V

Authorised Eaton Partner

9PX1000RT

Stock Status: Enquire

$3,071.43 inc. GST
$2,792.21 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

Description

The Eaton 9PX1000RT is an online double-conversion 2U rack/tower UPS rated 1000VA/900W at 120V, delivering true sine wave output to protect servers, network equipment and storage from outages, sags and surges. It provides eight NEMA 5-15R outlets from a 5-15P input plug, and ships with a rack-mount kit and tower stands so it can be installed in a 2U rack space or stood upright.

Hot-swappable internal batteries and ABM three-stage charging help extend battery service life and give advance warning for replacement. Runtime can be extended with up to four optional 9PXEBM36RT extended battery modules, and the Mini-Slot supports optional network, industrial gateway and relay cards. A graphical LCD with a five-button menu shows real-time load information, and the unit works with the Intelligent Power Software Suite for file saves and safe shutdown.

Features

- Online double-conversion protection with true sine wave output
- ABM three-stage charging extends battery service life and gives advance warning for battery replacement
- Hot-swappable internal batteries
- Optional NETWORK-M3 Gigabit network card for full remote access and control
- NEMA 5-15R outlets split into switched banks for managed load shedding
- Interactive LCD interface shows real-time load information
- Optional extended battery modules for longer runtime
- Intelligent Power Software Suite for file saves and safe shutdown
- Internal bypass for continued power during UPS faults

Warranty

• Standard UPS (with VRLA batteries): 2–3 year warranty
• Lithium-ion UPS (up to 3kVA): 5-year warranty
Extended Warranty Options:
Extended Eaton UPS warranties are available through IP Trading. Contact us to discuss a plan that suits your power protection needs.
https://www.eaton.com/us/en-us/catalog/services/ups-services/understanding-your-eaton-ups-warranty-.html

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Replacement Battery Finder

Technical Specifications

- Capacity: 1000VA / 900W (0.9 power factor)
- Topology: Online double-conversion, true sine wave output
- Input: 5-15P plug, 100/110/120 VAC nominal, 60 Hz range 50-70 Hz
- Output: 8 x NEMA 5-15R outlets, 120V default (100/110/120/125V selectable), 50/60 Hz
- Efficiency: 90.3% at maximum load
- Battery: Internal 36VDC 7Ah (252Wh) VRLA, hot-swappable
- Runtime at full load: 6 minutes
- Extended runtime: up to 4 x 9PXEBM36RT extended battery modules
- Communication: 1 Mini-Slot, 1 USB port, 1 RS-232 serial port, ROO/RPO terminal block
- Interface: Graphical LCD with 5-button programmable menu
- Form factor: 2U rack/tower, rack-mount kit and tower stands included
- Dimensions: 17.7 in depth x 3.4 in height x 17.3 in width
- Weight: 36.4 lb
- Noise level: below 40 dB at 1 metre
- Compliances: IEC 62040-2 Cat C1, CISPR22 Class B, FCC Part 15 Class B, VCCI Class B
- Certifications: cULus Listed, NOM

FAQs

Q: What is the input plug and outlet type on the 9PX1000RT?
A: It has a 5-15P input plug and eight 5-15R output receptacles, with the outlets arranged in switched banks for load shedding.

Q: Can the runtime be extended?
A: Yes. Up to four 9PXEBM36RT extended battery modules can be connected to increase runtime beyond the 6 minutes available at full load from the internal batteries.

Q: Can it be mounted in a rack or used as a tower?
A: Yes. It is a 2U unit supplied with a rack-mount kit and tower stands, so it can be installed in a rack or stood upright.

Q: Can I add network management to this UPS?
A: Yes. The Mini-Slot accepts optional NETWORK-M3, INDGW-M2 and RELAY-MS cards. The NETWORK-M3 provides Gigabit network connectivity for remote monitoring and control.

Q: What is the nominal output voltage?
A: The default output is 120V, with 100, 110 and 125V selectable. This is a 120V model with a 5-15P plug.

Q: Are the batteries user-replaceable?
A: Yes. The internal VRLA batteries and extended battery modules are hot-swappable. The replacement battery pack is part number EBP-1611.
