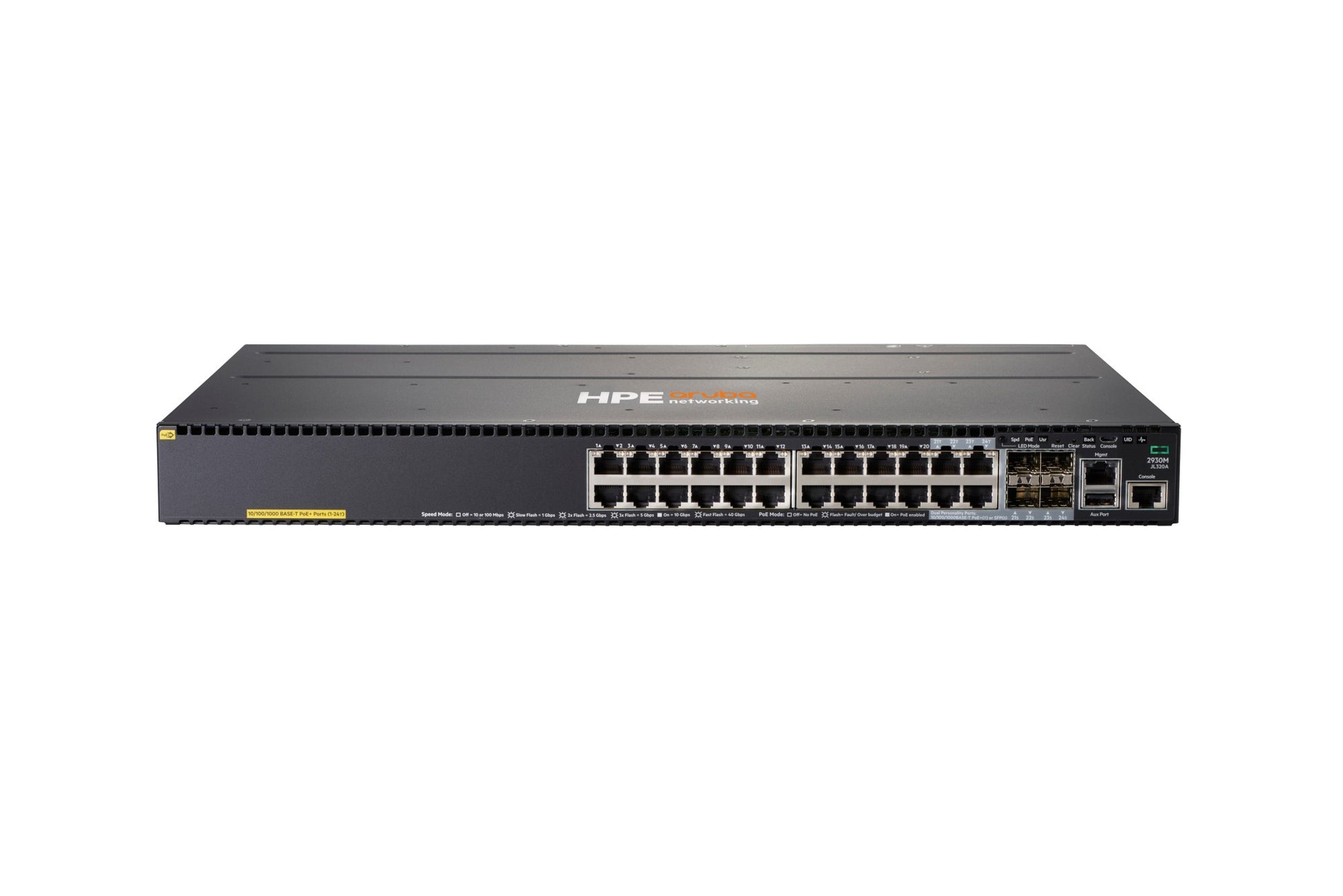

Aruba JL320A | 2930M 24-Port Gigabit PoE+ L3 Switch, 1-Slot, No PSU

Name: Aruba JL320A | 2930M 24-Port Gigabit PoE+ L3 Switch, 1-Slot, No PSU
Brand: Aruba
SKU: JL320A
Price: 3138.39 AUD
Availability: BackOrder

Authorised Aruba Partner

SKU:JL320A

Stock Status: Enquire

$3,138.39 inc. GST

$2,853.08 ex. GST

Sale Stock Status: Enquire

Shipping calculated at checkout.

Quantity

Description

The Aruba 2930M 24G PoE+ 1-slot switch is a stackable Layer 3 managed access switch with 24 Gigabit PoE+ ports and a modular uplink slot for 10GbE or 40GbE. This 24G PoE+, 1-slot, no PSU model ships without power supplies, which are ordered separately and set the PoE budget, making it a flexible fit for campus and branch access deployments.

It supports static, RIP and Access OSPF routing, 100 Gbps stacking of up to 10 members with single-chassis style management, and Dynamic Segmentation with 802.1X and ACL security. Management is available through Aruba Central, AirWave, IMC, CLI, web browser and SNMP, with ClearPass Policy Manager integration.

Features

- Stacking of up to 10 switches in a ring topology with virtualised single-chassis management
- Layer 3 feature set with static, RIP and Access OSPF routing
- IEEE 802.3at PoE+ delivering up to 30 W per port
- Modular 10GbE / 40GbE uplinks
- Dual modular power supplies for redundancy and PoE budget
- Zero Touch Provisioning
- Dynamic Segmentation, ACLs, Tunnel Node and 802.1X security
- Management via Aruba Central, AirWave and ClearPass Policy Manager integration
- Selectable queue configurations and robust QoS
- IEEE 802.1AB LLDP and LLDP-MED support

Warranty

Aruba Networking offers a Limited Lifetime Warranty on many of its hardware products, including select switches and access points. This warranty covers defects in materials and workmanship for the duration of the product's life, with support available for up to five years after the product's end-of-sale date.
Other Aruba products come with warranties ranging from 1 to 5 years, depending on the specific model. Warranty terms can vary based on the product category and model number.
Extended Warranty Options:
IP Trading offers tailored extended warranty solutions and support packages for Aruba Networking products, ensuring your network infrastructure remains protected beyond the standard warranty period. Contact our team to explore options that align with your organisation's needs.
https://www.hpe.com/psnow/doc/a00143138enw?jumpid=in_pdfviewer-psnow

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Technical Specifications

FAQs

Technical Specifications

- 20 x 10/100/1000 PoE+ RJ-45 ports
- 4 x dual-personality 10/100/1000BASE-T PoE+ or 100/1000 SFP ports
- 1 x modular uplink slot (10GbE / 40GbE)
- 1 x stacking module slot (100 Gbps stacking, up to 10 members)
- Layer 3: static, RIP and Access OSPF routing
- Switching capacity: 128 Gbps (228 Gbps including stacking)
- Throughput: up to 95.2 Mpps
- Processor: Dual Core ARM Cortex A9 @ 1016 MHz
- Memory: 1 GB DDR3 SDRAM
- Flash: 4 GB eMMC
- Packet buffer: 12.38 MB
- PoE+ budget: up to 1440 W with dual PSUs
- Power supplies JL086A (450 W) or JL087A (810 W) sold separately
- 1U rack-mountable
- IPv6 Ready Certified

FAQs

Q: Does the JL320A include a power supply?
A: No. This model ships without power supplies. The Aruba JL086A (450 W) or JL087A (810 W) modular power supplies are ordered separately and determine the available PoE budget.

Q: What is the maximum PoE+ budget?
A: The PoE+ budget reaches up to 1440 W when two power supplies are fitted. Each port can deliver up to 30 W under IEEE 802.3at.

Q: Does the switch support Layer 3 routing?
A: Yes. It supports static, RIP and Access OSPF routing.

Q: Can the JL320A be stacked?
A: Yes. It has a stacking module slot providing 100 Gbps stacking with up to 10 members in a ring topology, managed as a single virtual chassis.

Q: What uplink options are available?
A: The modular uplink slot accepts 10GbE or 40GbE modules. The unit also has four dual-personality ports that operate as 10/100/1000BASE-T PoE+ or 100/1000 SFP.

Q: How can the switch be managed?
A: Management is available through Aruba Central, AirWave, IMC, CLI, a web browser, SNMP, Telnet and RMON1, plus out-of-band serial or micro USB access.
