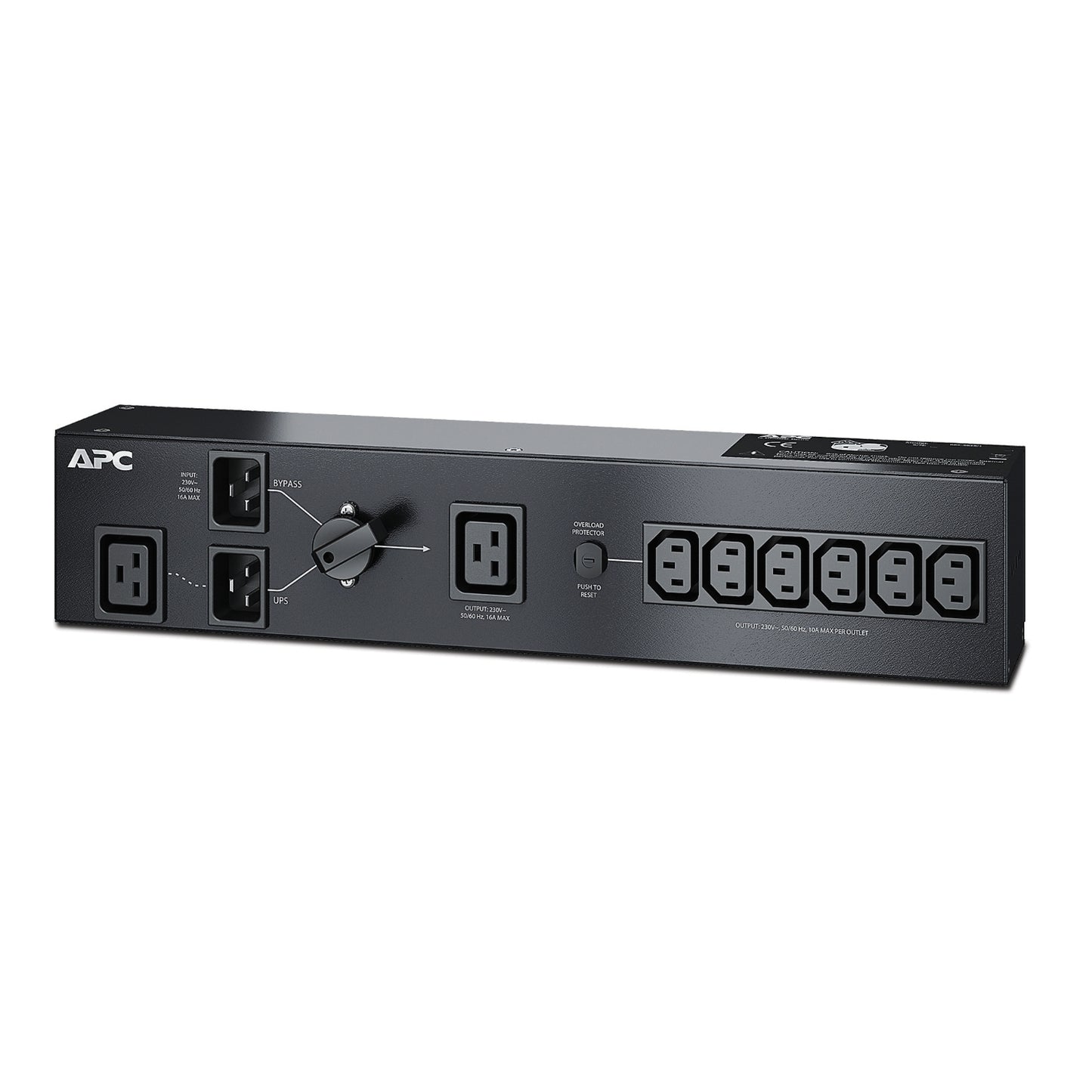

APC SBP3000RMI | Maintenance Bypass Panel, 3000VA, 230V 16A, 2U, 6x C13, 1x C19

APC SBP3000RMI | Maintenance Bypass Panel, 3000VA, 230V 16A, 2U, 6x C13, 1x C19

Authorised APC Partner

SKU:SBP3000RMI

$557.87 inc. GST
$507.15 ex. GST
Sale Stock Status: Enquire
Shipping calculated at checkout.

In stock: 32

Description

The APC SBP3000RMI is a 2U rack-mount service bypass PDU rated for 3000VA at 230V, 16A. It lets you take a connected UPS out of circuit for maintenance or replacement without interrupting power to the load, making it a practical addition to single-phase UPS installations in server rooms and comms cabinets. Power is fed through a C20 input with a 2.5 m cable, with six IEC C13 outlets and one IEC C19 outlet on the output side for servers, network and storage equipment.

Built-in circuit breaker protection and 99% efficiency keep the panel safe and low-loss in everyday use, and it is VDE certified. Rack mounting brackets are included for front mounting in a standard 19 inch rack, and the black finish suits standard rack environments.

Features

- Allows UPS maintenance or replacement without interrupting power to connected loads
- 2U rack-mount design with included mounting brackets
- Built-in circuit breaker protection
- Mixed C13 and C19 output outlets for servers, network and storage equipment
- High 99% efficiency
- VDE certified, RoHS compliant and REACh compliant

Warranty

APC by Schneider Electric provides comprehensive warranty coverage for its UPS and power protection products. Warranty durations vary by product line and model:
• Back-UPS Series: Typically includes a 3-year warranty.
• Smart-UPS Series: Generally offers a 2 to 3-year warranty, depending on the specific model.
• SMT/SMX Models: Often come with a 3-year warranty on the UPS unit and a 2-year warranty on the battery.
Extended Warranty Options:
IP Trading offers extended warranty solutions for APC products, providing additional peace of mind beyond the standard warranty period. These extensions may include benefits such as:
• 24/7 technical support
• Free shipping on replacement parts
• Replacement of non-functioning batteries
For more details on extended warranty options and to tailor a solution to your needs, please contact the IP Trading team.

All technical data should be verified on the manufacturer data sheets.

View full details

specs-tabs

Collapsible content

Technical Specifications

Datasheet

FAQs

APC Replacement Battery Finder

Technical Specifications

- Load capacity: 3000 VA
- Input and output voltage: 230 V, 50/60 Hz (220-240 V permissible)
- Maximum line current: 16 A
- Input connection: IEC 60320 C20 with 2.5 m cable
- Outlets: 6 x IEC 60320 C13 and 1 x IEC 60320 C19
- Protection: circuit breaker
- Efficiency: 99%
- Form factor: 2U rack-mount, front mounting
- Dimensions (H x W x D): 89 x 432 x 76 mm
- Net weight: 2.09 kg
- Operating temperature: 0 to 40 C
- Operating relative humidity: 0 to 95%
- Certification: VDE
- Included: user manual and rack mounting brackets

Datasheet

This product has a detailed PDF datasheet available. Open PDF datasheet in a new tab .

Your browser can’t display the embedded PDF. Click here to open it in a new tab.

FAQs

Q: What does a service bypass PDU do?
A: It allows the connected UPS to be taken out of circuit for maintenance or replacement while power continues to reach the load, avoiding downtime for the equipment it supports.

Q: What input and outlets does the SBP3000RMI provide?
A: It has a single IEC C20 input with a 2.5 m cable, and a total of six IEC C13 outlets and one IEC C19 outlet for connected equipment.

Q: What is the maximum load this bypass panel supports?
A: It is rated for 3000 VA at 230 V with a maximum line current of 16 A.

Q: How much rack space does it need?
A: It occupies 2U in a standard 19 inch rack, and rack mounting brackets are included in the box.

Q: Does it include circuit protection?
A: Yes. The unit has built-in circuit breaker protection on the 16 A circuit.

Q: What voltage and frequency does it support?
A: It operates at 230 V (220-240 V permissible) at 50/60 Hz for both input and output.
